Specification Sheet:
Model | HL0600A6 |
Equipment Drive | Eight sets of Mitsubishi Servo Motor(main motor servo+ upper servo+ 2 sets of double cutting+4traction servo) with upper/down film synchronization function |
Name | Three side sealing, stand-up with bottom gusset zipper pouch,four side sealing bags making machine |
Application pouches | Three side sealing bag, stand-up bag, three side with zipper pouch, stand-up with zipper bag, penguin bag, bottom gusset stand-up bag |
Feeding Function | Automatic feeding by Air Cylinder. |
Big advantages | Main driven for China frequency conversion motor with Japan YASKAWA frequency converter. |
Material | BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ; PET/PAPER/AL/PE of composite material and so on |

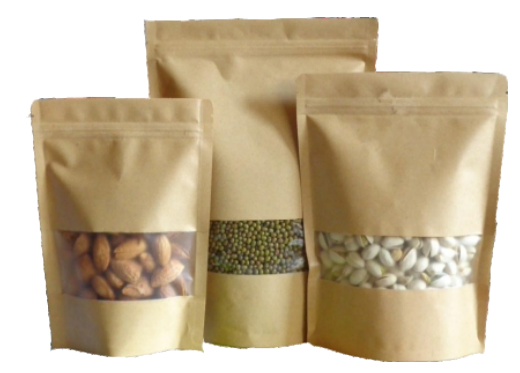

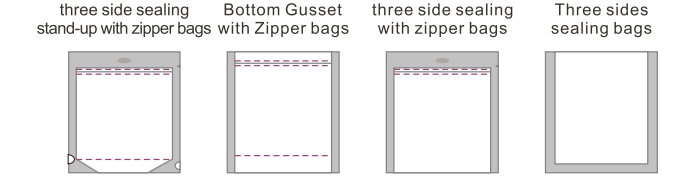

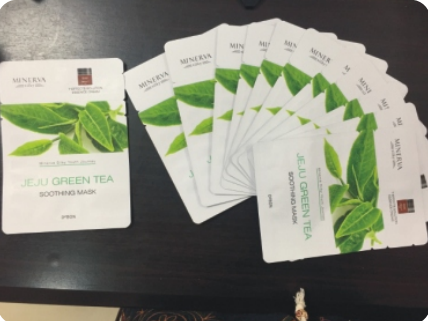

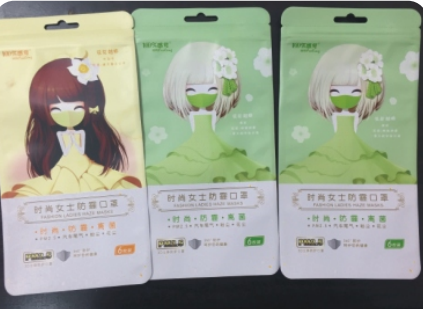

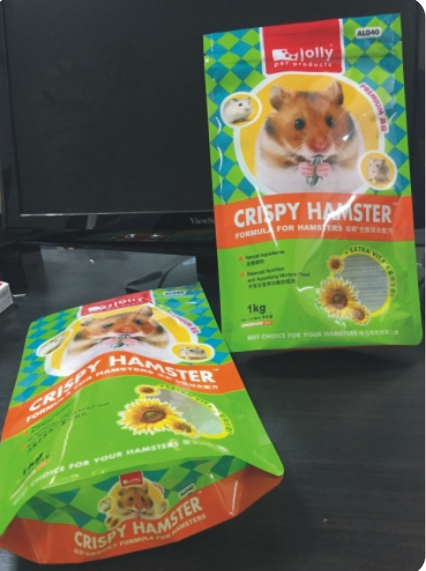

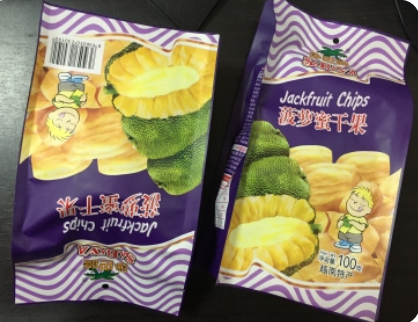

Applicable Bags Sample:
Stand up with zipper bag
Stand-up with bottom bag
Four side sealing bag
Three side sealing bag
Three side sealing with zipper bag
Core Advantages: Precision, Efficiency, and Reliability
The Three Sides, Stand-up, zipper&foldable Bottom Stand-up Bag Making Machine is basically multiple features combined with competitive advantages that together represent the main requirements of the high-end packaging market.
Precision To An Extreme: Eight Mitsubishi servo motor completely controls the key parts of the production process—feeding, traction, cutting, and sealing—to a degree that the final size errors hardly exceed ±0.3 mm. In addition, the upper/down film synchronization feature allows perfect print alignment even with complicated structures, thus saving the material and increasing the good product yield rate.
Reliability & Performance of the Stable Operation: A YASKAWA frequency converter and a servo drive system are the parts that allow the machine to run smoothly and steadily, even at its highest speed. The machine's modular configuration reduces the vibration, and the automatic pneumatic feeding system ensures the accurately timed material flow—thus production line continuous operation 24/7 with a very low rate of failures.
Energy Saving and Noise Reduction:
When operating with the YASKAWA frequency converter and high-efficiency servo motors, the newly developed machine's energy usage is drastically lowered as compared to the standard machines. Furthermore, the main noise is reduced to less than 75dB by the incorporation of the optimized mechanical transmission and noise-reducing components, thus leading to a cozy and environmentally friendly workshop.
Easy Operation and Maintenance:
The machine is smartly designed and equipped with a high-precision PLC control system and a user-friendly touch screen interface, whereby all the functions, such as parameter setting, production monitoring, failure diagnosis, and data collection, can be done at a single point. An operator can carry out a bag-type change, parameter setting, and fault handling very quickly and without any considerable training. Additionally, the modular design allows for easy and direct access to the parts that are serviced most frequently (servo motors, sealing heads, cutting knives), thus the respective maintenance becomes very simple, and the downtime is short.
Strong and Durable:
The frame has been constructed from premium carbon steel, and the critical wearable parts are of resistant materials (e.g., stainless steel sealing heads, tungsten steel cutting knives), so the HL0600A6 can be run continuously for extended periods without a breakdown. With regular servicing, the machine will last for more than 12 years, thus ensuring a good return on investment for the company.
FAQ
Q: Why choose me as the bag making machine supplier?
A: More than 33 years experienced in manufacturing bag making machine & accessoires, we adhere to the policy of self-production and self-use. Our machines are directly applied to our own company's production, ensuring continuous feedback for equipment updates and optimizations, and achieving a combination of practical application and production.
Q2: Can Tianzheng bag-making machine be designed directionally on demand?
A: With years of experience in bag production, Tianzheng has mastered the bag-making process. We can meet customers' special requirements (such as oversized bags, online shape bag die-cutting, and added spouts...) to achieve production standards, fulfill non-standard customized orders, and perfectly align with customer production requirements.
Q3: What about the after-sales service of Tianzheng bag-making machines? Will there be no after-sales support after purchasing a Tianzheng bag-making machine?
A3: First and foremost, quality is the core of Tianzheng bag-making machines. Prioritizing machine quality aligns better with customers' purchasing criteria than focusing solely on after-sales service. Secondly, we guarantee a 24-month warranty period for all Tianzheng bag-making machines. We also commit to providing 365-day round-the-clock after-sales service, with 7/24 online consultation to resolve after-sales issues promptly. We make the utmost commitment to ensuring our customers have access to high-performance equipment.
