Specification Sheet:
| Model | HL0400A1 | Power | 30kw/380v |
| System | PLC | Control | Screen |
| Voltage of Main Motor | 3kw | Voltage of traction motor | 1.5kw+1.0kw=2.5kw |
| Voltage of Unwinding motor | 0.55kw | Voltage of horizontal sealing | 2kwX6=12kw |
| Voltage of vertical sealing | 2kwX1+2kwX4=10kw | Gross Weight | 5500kg |
| Tension Control | Automatic | Feeding | Cylinder |
| Application of bag | Mid-sealing Bags | Organ Bags | 4-side sealing bags |
| Speed | 160pcs/min | 140pcs/min | 90pcs/min |
| Specification(No use times feeding) | Width :55-400mm | Width :55-400mm | Width :100-400mm |
| Length :400mm | |||
| Overall Dimension | 8500X1800X1860mm | ||
| Optional Function | 1.0ptional Model Specification: 400/600 2.Incessant Unwinding without stop the machine 3.Main Servo-motor Control | ||
Big advantages
Automatically pneumatic driven feeding device with photoelectric rectification tracking, upgrade the accuracy
Application of material:
BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ; PET/PAPER/AL/PE of composite material and so on

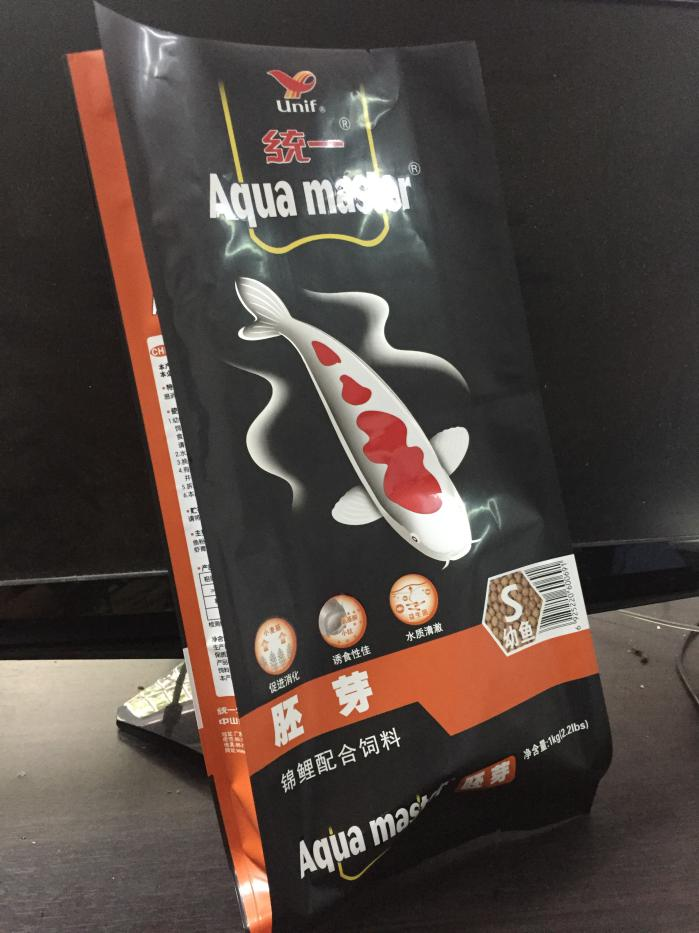

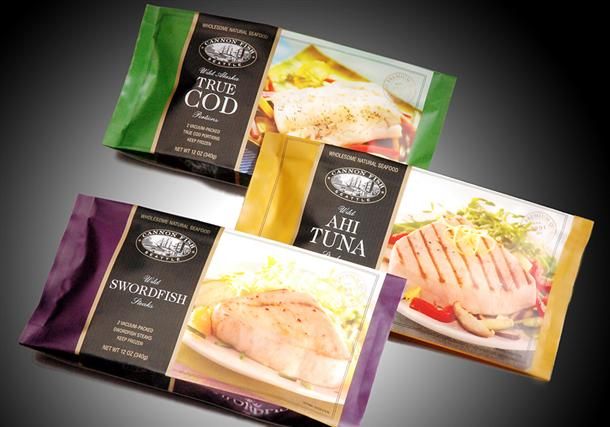

Pouches sample pictures:
Central sealing bag
Four side sealing bags
Central / Side sealing side gusset bag
Two side sealing (strict craft is needed for fact production)
Additional Advantages: Efficiency, Reliability, and User-Friendliness
Besides its main technical components, the Four Side Sealing Bag Making Machine also comes with a handful of user-friendly features that can effectively address business issues:
High Production Efficiency:
The Four Side Sealing Bag Making Machine goes far beyond the performance of many other competitors in its category by running at its top speed of 160 pcs/min (mid-sealing bags), thus the production capacity is increased, and the price per unit is reduced.
Energy-Saving & Low Noise: Major energy savings have been made in the power supply and motor components that have been combined to achieve a very efficient assembly, thus making the operating cost of such a machine for a long time very cheap. On the other hand, the noise emission level of the equipment operation is reduced by a more accurate mechanical design of the machine, which also makes it a pleasant and green workshop environment.
Operation & Maintenance is a piece of cake: The control interface is a touchscreen, which is really intuitive. It has a simple layout, and it is very user-friendly. You can quickly find all the operating functions (parameter setting, production counting, and fault diagnosis) in one place.The modular design of the machine not only makes the parts (sealing heads, cutting knives, tension rollers) very accessible, but also the maintenance so easy that it takes less time.
Durability & Longevity
This product is constructed from premium carbon steel, and the parts that are exposed to the highest wear have been substituted with wear-resistant parts (for example, stainless steel sealing heads, tungsten steel cutting knives). It can operate non-stop for 24 hours.
Provided the regular servicing of this machine is done properly after a few years, it will be your companion for more than a decade, so that you can count on a very good long-term return on investment, which is essentially determined by the service operation.
FAQ
Q: Why choose me as the bag making machine supplier?
A: More than 33 years experienced in manufacturing bag making machine & accessoires, we adhere to the policy of self-production and self-use. Our machines are directly applied to our own company's production, ensuring continuous feedback for equipment updates and optimizations, and achieving a combination of practical application and production.
Q2: Can Tianzheng bag-making machine be designed directionally on demand?
A: With years of experience in bag production, Tianzheng has mastered the bag-making process. We can meet customers' special requirements (such as oversized bags, online shape bag die-cutting, and added spouts...) to achieve production standards, fulfill non-standard customized orders, and perfectly align with customer production requirements.
Q3: What about the after-sales service of Tianzheng bag-making machines? Will there be no after-sales support after purchasing a Tianzheng bag-making machine?
A3: First and foremost, quality is the core of Tianzheng bag-making machines. Prioritizing machine quality aligns better with customers' purchasing criteria than focusing solely on after-sales service. Secondly, we guarantee a 24-month warranty period for all Tianzheng bag-making machines. We also commit to providing 365-day round-the-clock after-sales service, with 7/24 online consultation to resolve after-sales issues promptly. We make the utmost commitment to ensuring our customers have access to high-performance equipment.
