Technical Parameter:
| Model | HL0700A9-DH | Dmension(L*W*H) | 23000x3000x2300mm | G.W. | 10800kg | ||
| Three-phase Voltage | 380V+10%,50Hz | Total Power | 131.4kw | Raw Material | Various laminated films | ||
| Max. Width of Film | 1450mm | Max. Dia.of Film | 800mm | Temperature Control | PC control | ||
| Max. Width of Side Gusset Film | 300mm | Max. Dia.of Side Gueest Film | 600mm | System Control | PLC control | ||
| Driving Type: | |||||||
| Main Drive | Shaft eccentricity | Main Motor | 5000W servo moto | ||||
| Feeding Traction | 5 groups x servo motors | Double Cutting | 2 groups x servo motors | Upper film traction | 1 group x servo motor | ||
| Side Gusset Location | 1 set servo | Bottom gusset traction | 1 group x servo motor | ||||
| Side Gusset traction | 1 group x servo motor | Gusset Point Sealing | 1 group x servo motor | gusset cutter | 1 group x servo motor | ||
| Sealing Station: | |||||||
| Horizontal Sealing | 6groups x 740mm | Horizontal Cooling | 2 groups x 740mm | Ultrasonic Strengthened | 2 groups | ||
| Vertical Sealing A | 3 groups x 780mm | Vertical Cooling A | 3 groups x 450mm | ||||
| Vertical Sealing B bottom-reinforced sealing | 3groups x200mm | Vertical Cooling B bottom-reinforced | 1 group x 200mm | Vertical Sealing B-Zipper | 2 groups x 800mm | Vertical Cooling B-Zipper | 2 groups x 450mm |
| Vertical Sealing C | 2 groups x 800mm | Vertical Cooling C | 2 groups x 450mm | ||||
| upper film location sealing | 1group x 200mm | upper film location Location Cooling | 1 group x 200mm | Gusset Location Sealing | 3 groups x 50mm | ||
| Available Pouches: | |||||||

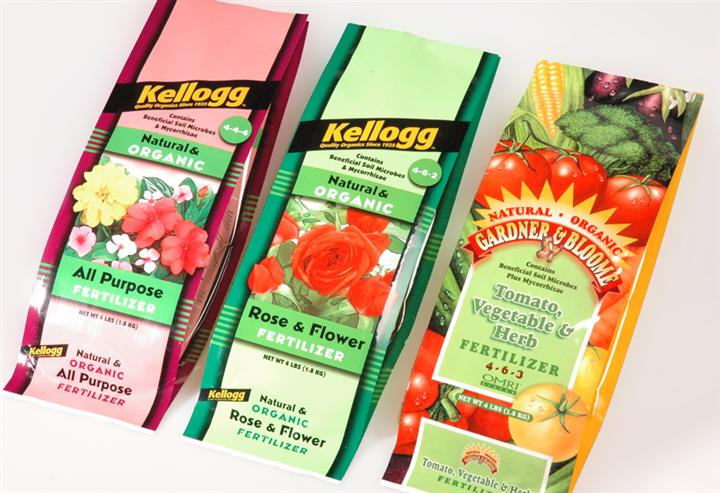

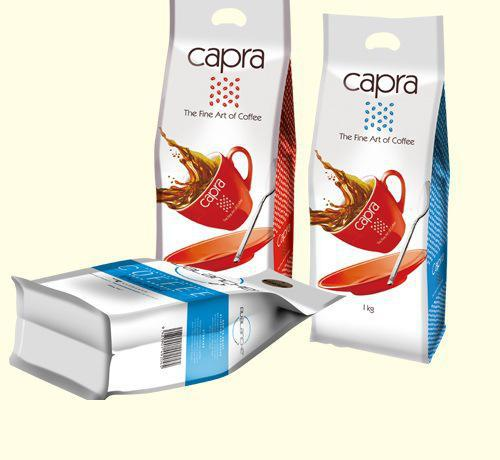

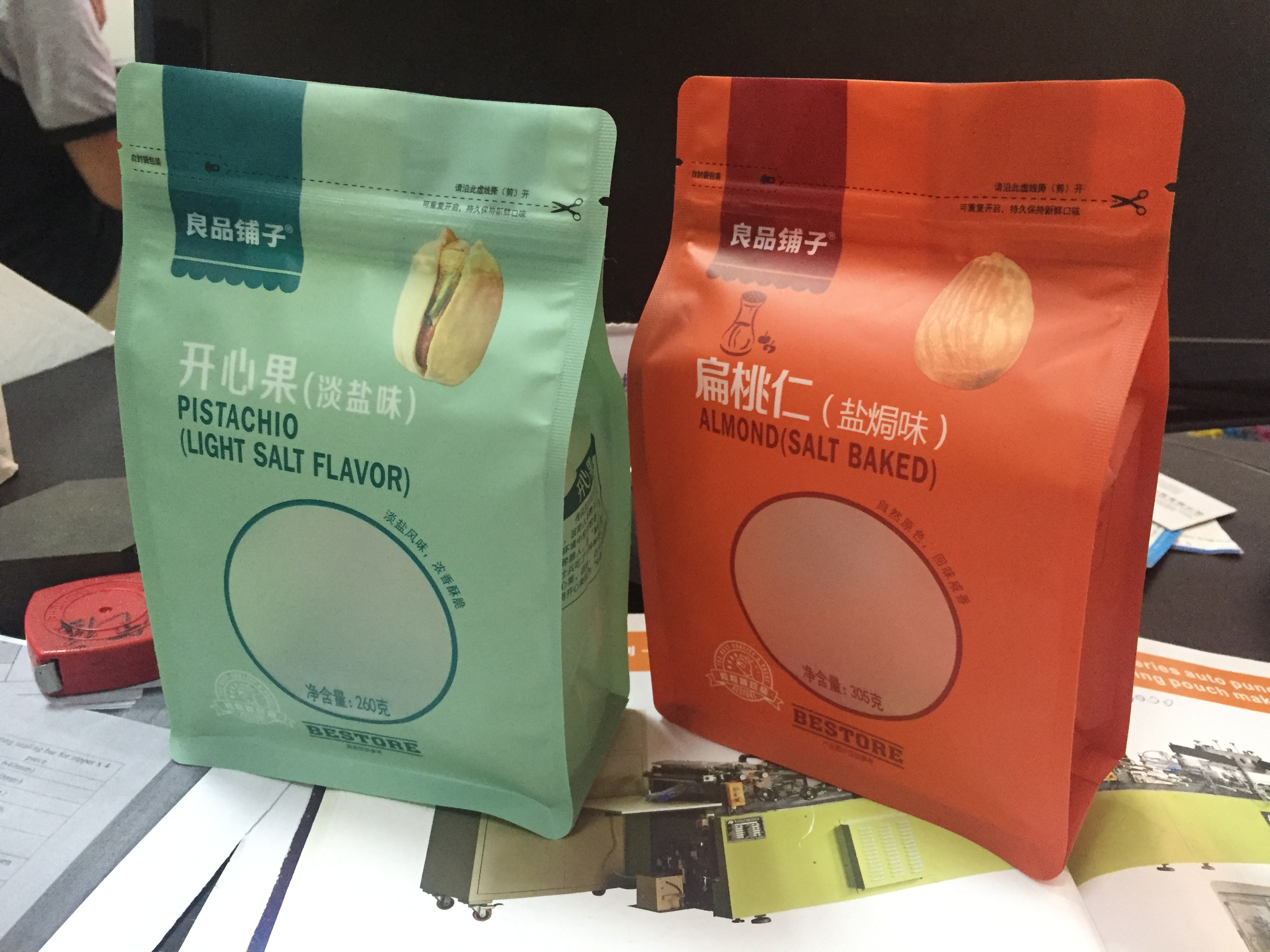

| Flat bottom with/without zipper bag | Single Lane | L:160-600mm | W:100-370mm | Gusset Width:55-150mm | Bottom depth:27.5-75mm | Speed:10-70pcs/min | |
| Double Lanes | L:160-300mm | W:100-370mm | Gusset Width:55-151mm | Bottom depth:27.5-45mm | Speed:10-70pcs/min | ||

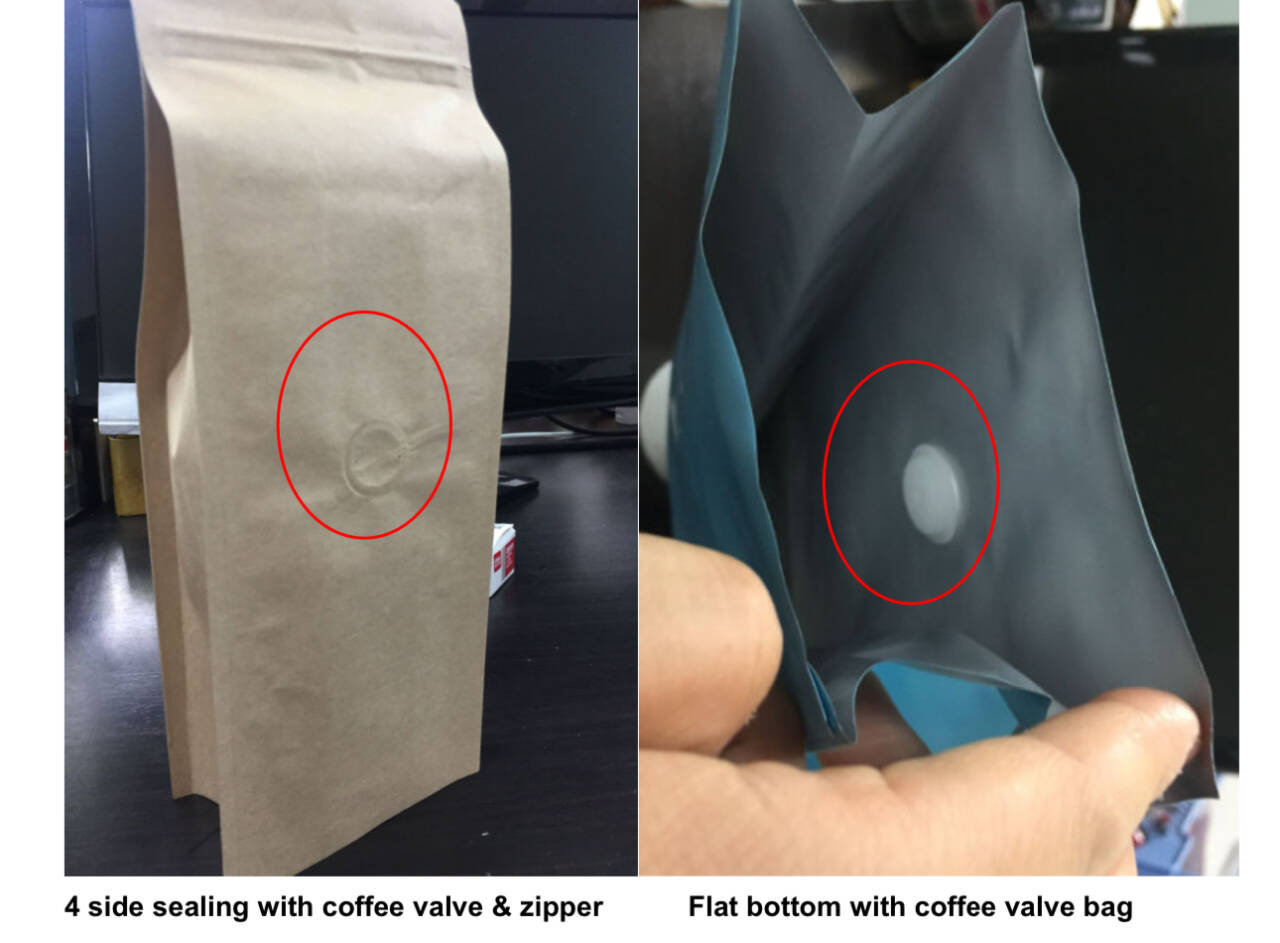

| Four side sealing with/without zipper bags | Single Lane | L:160-600mm | W:100-370mm | Gusset Width:55-150mm | Speed:10-70pcs/min | ||
| Double Lanes | L:160-300mm | W:100-370mm | Gusset Width:55-150mm | Speed:10-70pcs/min | |||
| Tree side sealing with/without zipper bags | Single Lane | L:160-680mm | W:100-370mm | Speed:10-90pcs/min | |||
| Double Lanes | L:160-340mm | W:100-370mm | Speed:10-90pcs/min | ||||
Application of material:
BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ; PET/PAPER/AL/PE laminated pouch.
Service guarantee
After the equipment debugging is qualified, we will provide comprehensive value-added services to ensure smooth production for customers. Provide exclusive operation training for customers, detailing the optimal operating parameters, operating procedures, daily maintenance skills, and common troubleshooting methods after equipment debugging; Equipped with complete debugging materials and technical manuals, including debugging plans, parameter setting tables, testing reports, etc., for customers to easily refer to and consult in the future; Establish an after-sales tracking mechanism, conduct follow-up visits to customers within 72 hours after equipment delivery to understand the operation status of the equipment, answer customers' questions about parameter optimization and operation, and if necessary, dispatch engineers to assist customers in on-site debugging and adaptation, fully ensuring the smooth development of customer production.
We always take "customer needs as the guide, quality assurance as the core", and provide refined and comprehensive equipment debugging services to ensure that every soft plastic packaging machinery can accurately match customer production needs, helping customers improve production efficiency, reduce production costs, and achieve mutual benefit and win-win results.
FAQ
Q: Why choose me as the bag making machine supplier?
A: More than 33 years experienced in manufacturing bag making machine & accessoires, we adhere to the policy of self-production and self-use. Our machines are directly applied to our own company's production, ensuring continuous feedback for equipment updates and optimizations, and achieving a combination of practical application and production.
Q2: Can Tianzheng bag-making machine be designed directionally on demand?
A: With years of experience in bag production, Tianzheng has mastered the bag-making process. We can meet customers' special requirements (such as oversized bags, online shape bag die-cutting, and added spouts...) to achieve production standards, fulfill non-standard customized orders, and perfectly align with customer production requirements.
Q3: What about the after-sales service of Tianzheng bag-making machines? Will there be no after-sales support after purchasing a Tianzheng bag-making machine?
A3: First and foremost, quality is the core of Tianzheng bag-making machines. Prioritizing machine quality aligns better with customers' purchasing criteria than focusing solely on after-sales service. Secondly, we guarantee a 24-month warranty period for all Tianzheng bag-making machines. We also commit to providing 365-day round-the-clock after-sales service, with 7/24 online consultation to resolve after-sales issues promptly. We make the utmost commitment to ensuring our customers have access to high-performance equipment.
