Technical Parameter
| Model | HL0600A2 | Power | 40kw/380v |
| System | PLC | Control | Screen |
| Application of bags | 3-side sealing bags | 3-side sealing bags | 4-side sealing bags |
| Speed | 150pcs/min | 120pcs/min | 90pcs/min |
| Voltage of Main Motor | 3kw | Voltage of traction motor | 1.5kwX2=3kw |
| Voltage of Unwinding motor | 0.55kw | Voltage of assitant motor | 0.4kwX2=0.8kw |
| Voltage of horizontal sealing | 2kwX8=16kw | Voltage of vertical sealing | 2kwX8=16kw |
| Tension Control | Automatic | Feeding | Cylinder |
| Gross Weight | 5500kg | Overall Dimension | 10000X2000x1900mm |
| Specification(No use times feeding) | Width :80-600mm | Width :60-350mm | Width :100-500mm |
| Length :400mm | Length:150-500mm | Length :400mm | |
| Optional Function | 1.Double Unwinding 2.Main Servo-motor Control 3.Double Cutting-knife 4.Incessant Unwinding without stop the machine 5.0ptional Model Specification:400/500 | ||
Big advantages
Main driven for China frequency conversion motor with Japan YASKAWA frequency converter.
Application pouches
Three side sealing bag, stand-up bag, three side sealing pouch, stand-up bag, penguin bag, four side sealing bag
Material
BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ; PET/PAPER/AL/PE of composite material and so on
Reference Pouches Available:

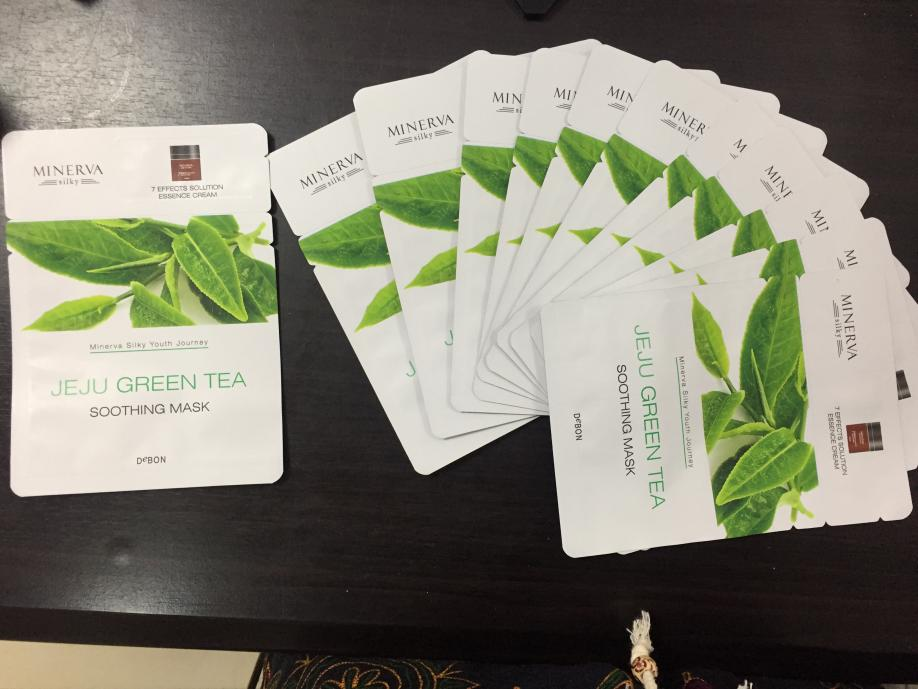

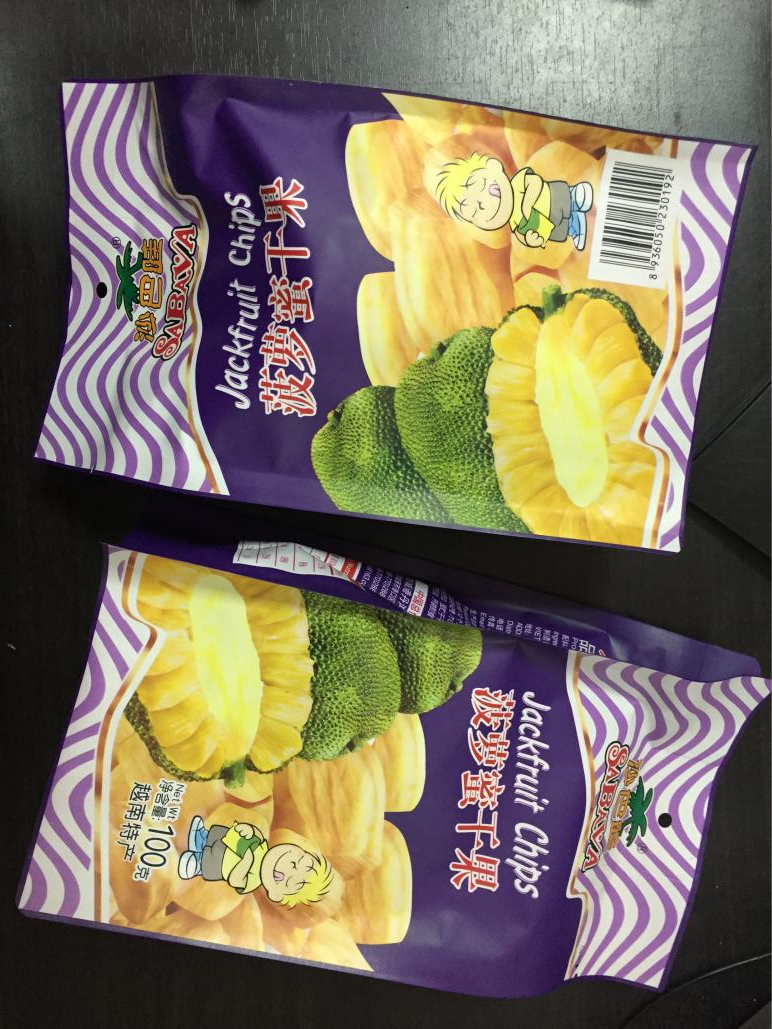

Three side sealing bag
Four side sealing bag

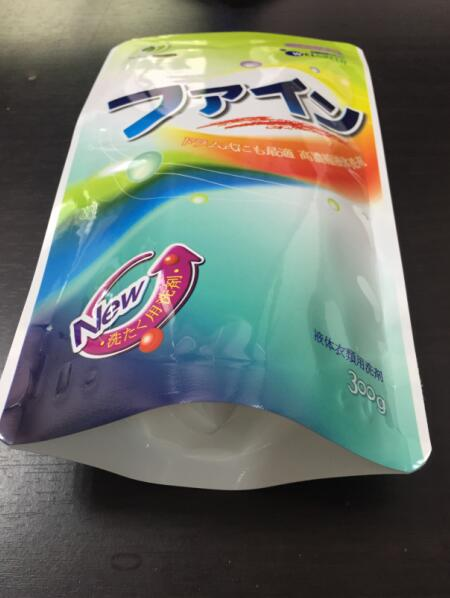

Stand-up bag

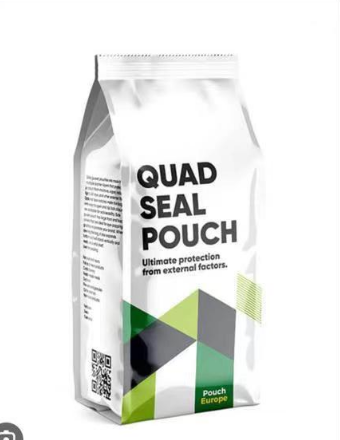

4 side sealing bag
Core Advantages: Reliability, Efficiency, and Cost-Effectiveness
The Stand-up Bag Making Machine comes with several features that are designed to boost production efficiency, reduce running costs, and deliver better product quality.
High-Speed & Accurate Operation: The equipment is capable of producing up to 150 three-side sealing bags per minute at maximum, which is a great speed and can definitely help the factory increase its output. The integration of the Japan YASKAWA inverter allows for a smooth speed adjustment, and the automatic tension control system prevents stretching or wrinkling of the film, thus maintaining good quality even at high speeds.
Reliable Core Components: Use of China-made main motor variable frequencies combined with a Japan YASKAWA inverter, this setup will ensure reliable operation, low failure rate, and long lifespan. Energy efficiency is a feature of YASKAWA inverters (energy saving by up to 15% when compared with ordinary inverters), and they also offer precise speed control, thus significantly reducing running costs.
Low Noise & Energy Saving: The latest mechanical transmission and the noise-reducing parts have been redesigned to reduce the running noise to less than 75dB, thus providing a nice and pleasant workshop environment. The energy-saving motor and inverter, along with a smart power management system, help to reduce the energy consumption throughout the whole life.
Easy operation and maintenance: The touch screen control interface combines all the machine functions into one single, very intuitive interface, thus a very low level of training is required. The machine's modular design allows for quick opening of the covers to access the main components (e.g., sealing heads, knives, tension rollers), facilitating maintenance and less production downtime.
Long-lasting & Stable: The mainframe of the machine is made of high-grade carbon steel, and the wear parts are of high quality (e.g., stainless steel sealing heads, tungsten steel cutting knives). It is built for continuous 24/7 operation, and with proper routine maintenance, the service life is more than 10 years.
FAQ
Q: Why choose me as the bag making machine supplier?
A: More than 33 years experienced in manufacturing bag making machine & accessoires, we adhere to the policy of self-production and self-use. Our machines are directly applied to our own company's production, ensuring continuous feedback for equipment updates and optimizations, and achieving a combination of practical application and production.
Q2: Can Tianzheng bag-making machine be designed directionally on demand?
A: With years of experience in bag production, Tianzheng has mastered the bag-making process. We can meet customers' special requirements (such as oversized bags, online shape bag die-cutting, and added spouts...) to achieve production standards, fulfill non-standard customized orders, and perfectly align with customer production requirements.
Q3: What about the after-sales service of Tianzheng bag-making machines? Will there be no after-sales support after purchasing a Tianzheng bag-making machine?
A3: First and foremost, quality is the core of Tianzheng bag-making machines. Prioritizing machine quality aligns better with customers' purchasing criteria than focusing solely on after-sales service. Secondly, we guarantee a 24-month warranty period for all Tianzheng bag-making machines. We also commit to providing 365-day round-the-clock after-sales service, with 7/24 online consultation to resolve after-sales issues promptly. We make the utmost commitment to ensuring our customers have access to high-performance equipment.
