Technical Parameter
| Model | HL0600A4 | Power | 42kw/380v |
| System | PLC | Control | Screen |
| Application of bags | 3-side sealing bags | Mid-side sealing bags | Organ Bags |
| Speed | 150pcs/min | 160pcs/min | 140pcs/min |
| Voltage of Main Motor | 3kw | Voltage of traction motor | 1.0kwX2=2kw |
| Voltage of Unwinding motor | 0.55kw | Voltage of horizontal sealing | 2kwX6=12kw |
| Voltage of vertical sealing | 2kwX4+2kwX8=24kw | ||
| Tension Control | Automatic | Feeding | Cylinder |
| Gross Weight | 5500kg | Overall Dimension | 9500X1450X1650mm |
| Specification(No use times feeding) | Width :80-400mm | Width :55-400mm | Width :55-300mm |
| Length :30-400mm | Length:30-400mm | Length :30-400mm | |
| Optional Function | 1.0ptional Model Specification:400/500 2.Main Servo-motor Control 3.Double Cutting-knife 4.Incessant Unwinding without stop the machine | ||
Big advantages
1. Japan imported Panasonic servo motors drive the traction（When speed up, no influence on the temperature, equipped with Japan reducer also);
2. Automatically pneumatic driven feeding device with photoelectric rectification tracking, upgrade the accuracy
Material
BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ; PET/PAPER/AL/PE of composite material and so on
Reference pictures Available:

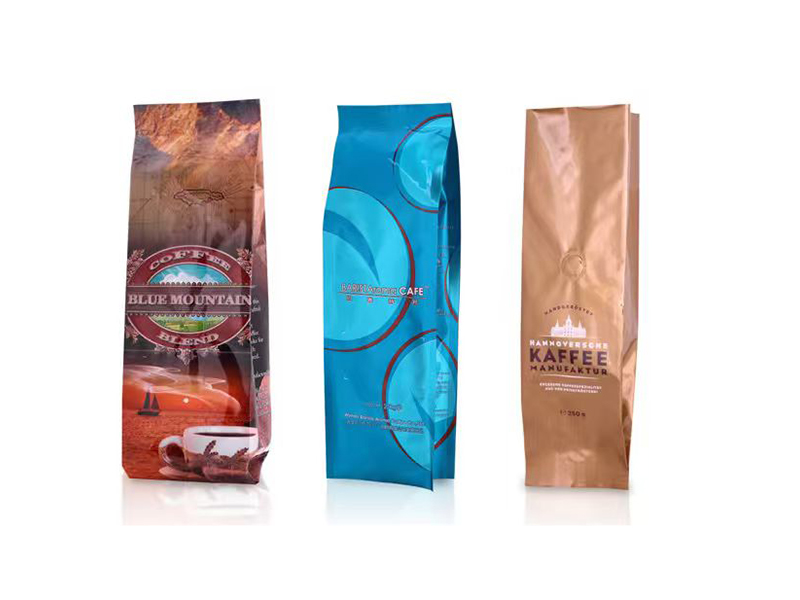

Central sealing bags side gusset organ bags
central sealing
Organ bags with side gussets

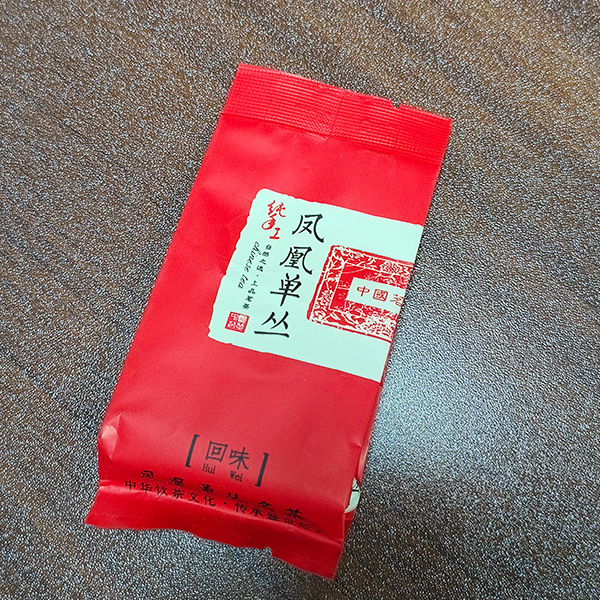

4 side sealing bags
Finished Product Display
Company Introduction
FOSHAN TIANZHENG MACHINERY CO., LTD. inherits and integrates the experience and technology from HONGLI Pouch Production Factory, we develop all the craft and technology on bag making machines
and accessories machines as professional manufacturer covering scientific research, manufacturing, sales, service. Our company has the abundant technical force, professional technology, high-quality staff team
and perfect service, so that our machines are exported to more than 30 countries including USA, Mexico, Columbia, Chile, Argentina, Korea, Malaysia, Pakistan, Iran, India, Sri Lanka, Nepal, Bangladesh, Latvia,
Mauritius and so on.
Our high quality and good performance of the machine has won the trust of the customers including thedomestic and oversea market. Customers recommend each other after received superior feedback from greatlyimprove
production efficiency and enlarging product quality diversity.Irregular-shaped die-cutting machine, automatic punching window & thermoprinting stamp rewinding machine,flat bottom bag making machine as our new product
in these two years been recognized by domestic and overseacustomers with high reputation which help customers bring long-term benefits.
FAQ
Q: Why choose me as the bag making machine supplier?
A: More than 33 years experienced in manufacturing bag making machine & accessoires, we adhere to the policy of self-production and self-use. Our machines are directly applied to our own company's production, ensuring continuous feedback for equipment updates and optimizations, and achieving a combination of practical application and production.
Q2: Can Tianzheng bag-making machine be designed directionally on demand?
A: With years of experience in bag production, Tianzheng has mastered the bag-making process. We can meet customers' special requirements (such as oversized bags, online shape bag die-cutting, and added spouts...) to achieve production standards, fulfill non-standard customized orders, and perfectly align with customer production requirements.
Q3: What about the after-sales service of Tianzheng bag-making machines? Will there be no after-sales support after purchasing a Tianzheng bag-making machine?
A3: First and foremost, quality is the core of Tianzheng bag-making machines. Prioritizing machine quality aligns better with customers' purchasing criteria than focusing solely on after-sales service. Secondly, we guarantee a 24-month warranty period for all Tianzheng bag-making machines. We also commit to providing 365-day round-the-clock after-sales service, with 7/24 online consultation to resolve after-sales issues promptly. We make the utmost commitment to ensuring our customers have access to high-performance equipment.
