Big size three side sealing bag making machine including the advantage of low noise, less consume and it widely used for food, electrical, chemical, Daily chemical products,etc.soft-packing industrial.
Technical Parameter
| Model | HL0600A0 | Power | 35kw/380v |
| System | PLC | Control | Screen |
| Application of bag | 3-side sealing bags | Main Voltage | 3kw |
| Speed | 30-150pcs/min | Gross Weight | 4500kg |
| Voltage of traction motor | 1.5X2=3kw | Voltage of unwinding motor | 0.55kw |
| Voltage of horizontal sealing | 2kwX6=12kw | Voltage of vertical sealing | 2kwX8=16kw |
| Tension Control | Automatic | Feeding | Cylinder |
| Overall Dimension | 8500X1800X1860mm | ||
| Specification (No use times feeding) | Bags Width : 80-600mm Bags Length : 30-400mm(Times feeding is needed while over this specification) | ||
| Optional Function | 1.Double Unwinding 2.Main Servo-motor Control 3.Double Cutting-knife4.Incessant Unwinding without stop the machine5.Optional Model Specification:400/500/800 | ||
Application bags
Three side sealing bag, 4 pcs at a time
Film material
Laminated film: BOPP/CPP/PET/LYLON/, Multilayer extrusion film/AL/ PAPER LAMINATED FILM

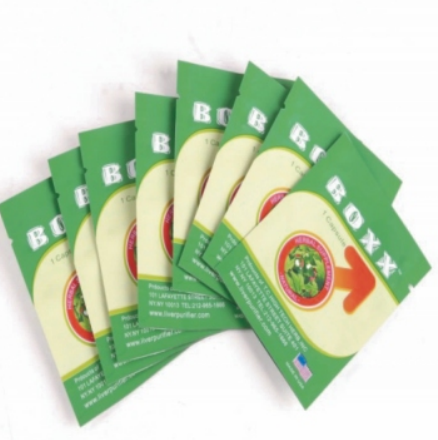

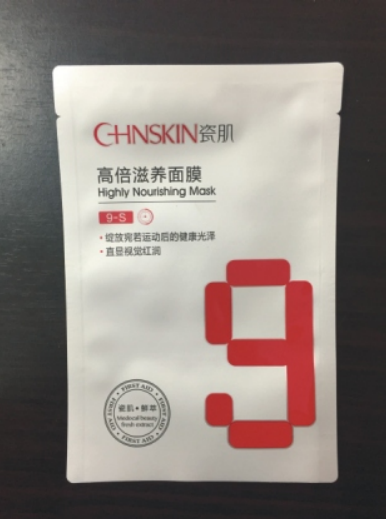

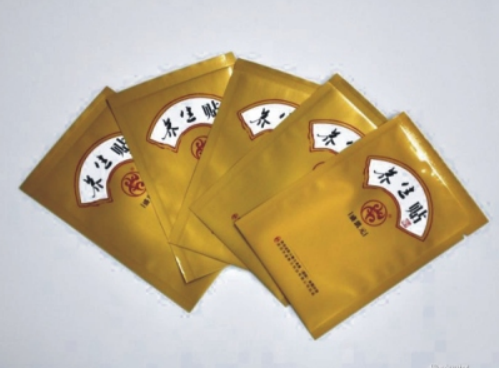

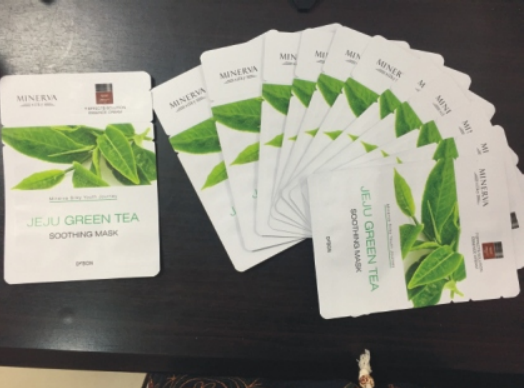

Sample Bags

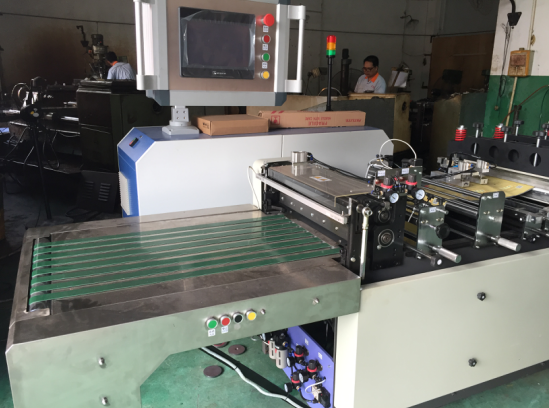

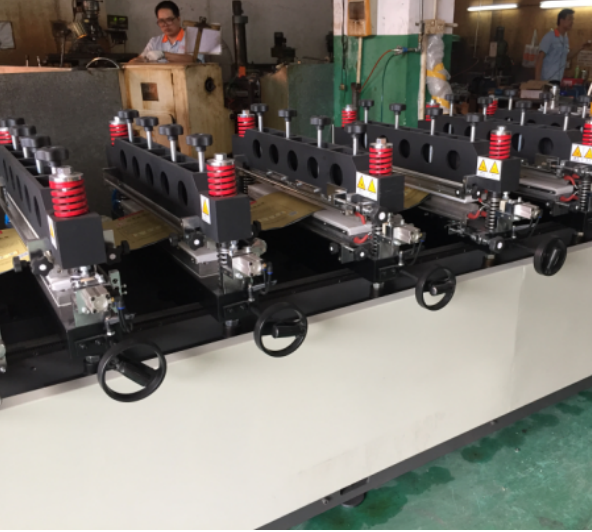

Core Advantages: Low Noise, Energy Saving, and Reliability
The Three Side Sealing Pouch Making Machine integrates multiple competitive advantages, addressing key pain points of enterprises in production efficiency, operational costs, and working environment:
Low Noise Operation: Adopting optimized mechanical transmission structures and noise-reducing components, the machine operates with low noise, creating a comfortable and environmentally friendly workshop environment, in line with modern industrial production standards.
Energy-Saving Performance: By executing rational power distribution, choosing energy-efficient motors, and using intelligent controls, the equipment only uses the minimum energy required for the performance and thus indirectly helps the enterprises to reduce their long-term operational costs.
Stable & Durable: The main frame is constructed of premium-grade steel, and the use of wear-resistant parts renders it capable of running continuously and keeping its strength unchanged during the cycles. The automatic tension control and precise sealing systems contribute to product quality at a high level, and therefore, the raw materials are saved, and the yield is increased.
Easy Operation & Maintenance: A touchscreen control panel unites all the functions in a single place for a specialist who can easily and rapidly change parameters and control production. The maintenance is facilitated by the modular design with the main components readily available, so that the downtime and maintenance costs of the equipment can be kept to a minimum.
Target Application Industries
Such a versatile machine as the HL0600A0 has the ability to adapt to different packaging needs in the soft-packing industry, thus basically becoming a general-purpose machine.
Food Industry: Packaging of snacks, candies, dried fruits, frozen foods, and instant meals—airtight sealing is the main step to keep them fresh and extend their shelf life.
Electrical Industry: Packaging of electronic parts, wires, and small electrical appliances—using packaging materials that keep the components free from dust, moisture, and static damage.
Chemical Industry: Packaging of chemical reagents, fertilizers, and industrial additives—using corrosion-resistant films to safely and attractively present product safety requirements.
Daily Chemical Industry: Packaging of toiletries, cleaning agents, and cosmetics—product appearance and good sealing attract more customers and thus enhance the product's market competitiveness.
FAQ
Q: Why choose me as the bag making machine supplier?
A: More than 33 years experienced in manufacturing bag making machine & accessoires, we adhere to the policy of self-production and self-use. Our machines are directly applied to our own company's production, ensuring continuous feedback for equipment updates and optimizations, and achieving a combination of practical application and production.
Q2: Can Tianzheng bag-making machine be designed directionally on demand?
A: With years of experience in bag production, Tianzheng has mastered the bag-making process. We can meet customers' special requirements (such as oversized bags, online shape bag die-cutting, and added spouts...) to achieve production standards, fulfill non-standard customized orders, and perfectly align with customer production requirements.
Q3: What about the after-sales service of Tianzheng bag-making machines? Will there be no after-sales support after purchasing a Tianzheng bag-making machine?
A3: First and foremost, quality is the core of Tianzheng bag-making machines. Prioritizing machine quality aligns better with customers' purchasing criteria than focusing solely on after-sales service. Secondly, we guarantee a 24-month warranty period for all Tianzheng bag-making machines. We also commit to providing 365-day round-the-clock after-sales service, with 7/24 online consultation to resolve after-sales issues promptly. We make the utmost commitment to ensuring our customers have access to high-performance equipment.
