Technical Parameter
| Model | HL0400A5 | Power | 45.5kw/380v | ||
| System | PLC | Control | Screen | ||
| Voltage of Main Motor | 3.5kw | Voltage of traction motor | 1.5kw+1.5kw+0.4kw=3.4kw | ||
| Voltage of Unwinding motor | 0.55kw | Voltage of sealing | 16 groups, total of 38kw | ||
| Servo motors | 4 sets | Gross Weight | 5500kg | ||
| Tension Control | Automatic | Feeding | Cylinder | ||
| Application of bag | Labeling bag | Mid-sealing Bags | Organ Bags | 4-side sealing bag | side Organ bags |
| 100pc/min | 30-130pc/min | 30-120pc/min | 30-80pc/min | 110pc/min | |
| Specification | Width:within 850mm | Width:within 850mm | Width:within 850mm | ||
| Lenght of bag | Within 250mm | Within 400mm | Within 300mm | Within 250mm | Within 300mm |
| Overall Dimension | 11.2x1.7 X1.86m | ||||
| Labeling Device | Automatic hob punching device automaticlabeling design.Accuracy rate: ±1.5mm | ||||
Application range

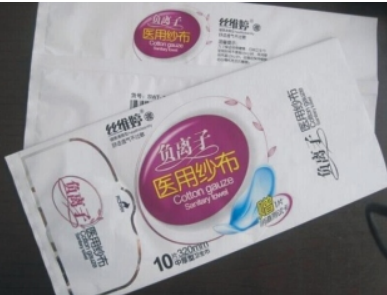

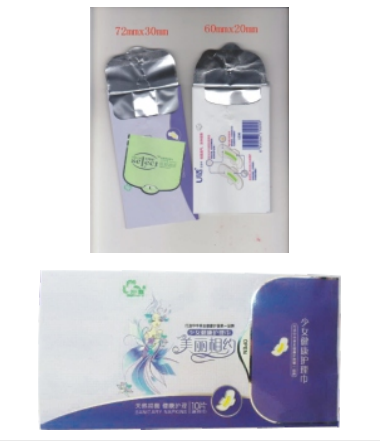

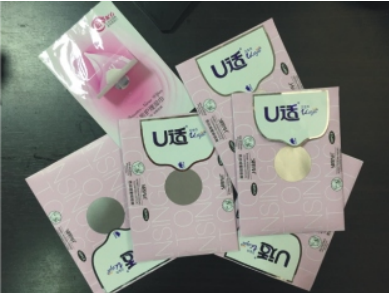

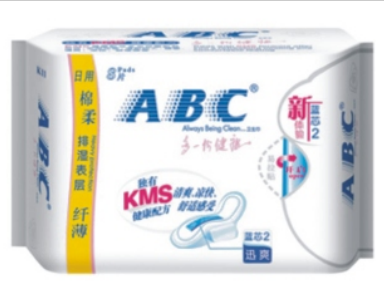

Sticker pasted bag, Sanitary pad bag, Tissue bag, central sealing bag, Side gusset bag，4 side sealing bag，3 side sealing bag. All these are the folio type produced. Reference pictures Available:
Key Advantages: Efficiency, Precision, and User-Friendliness
Apart from its technical features and versatility, the Auto Labeling In-line Bag Making Machine also boasts a number of user-friendly design features and performance enhancements:
Productive manufacturing. The blend of servo motor control, automatic tension adjustment, and the most efficient mechanical transmission on the device enables the machine to run at very high speeds with variable speed (30-130 pieces per minute, depending on the type of bag), thus drastically raising the production output and lowering the unit cost.
Extremely
Every element of the production process is controlled very precisely by highly accurate components, which is reflected in the material feeding, sealing, and cutting stages. The automatic labeling system has a ±1.5mm accuracy, which, together with the consistent control of bag dimensions (width within 850mm, length up to 400mm), guarantees that every product meets the strict quality requirements.
Easy operation and maintenance
Via the user-friendly touch screen control interface,touch screen control interface, all operation functions are combined, so changing the parameters, keeping the production count, and running the fault diagnostics are all activities that can be done quickly. Because of the machine’s modular design, it is very easy to maintain, as the main parts can be reached with almost no downtime for regular servicing.
Durability & Efficiency of Performance:
Very high-quality steel has been used to make the machine frame. At the same time, the components that are frequently subjected to wear have been made of wear-resistant materials. Hence, the machine can run continuously for a few hours without getting tired. The strong mechanical structure and the dependable electrical system of the machine make it highly unlikely that the equipment will break down, so production can go on without interruption, and the working life of the machine is extended.
In addition to that, labeling bag-making machines are also used to a great extent in the industries of food and beverage, daily chemicals, healthcare, electronics, logistics, and so on. It can manufacture snack bags, packaging for hygienic products, sterilized medical bags, and bags for industrial components. It does so by changing the materials (such as PE, PP, PVC, and composite films) and the specification of the bags, thus giving a one-stop packaging solution to the enterprises, which makes it easy for their business growth and market penetration.
FAQ
Q: Why choose me as the bag making machine supplier?
A: More than 33 years experienced in manufacturing bag making machine & accessoires, we adhere to the policy of self-production and self-use. Our machines are directly applied to our own company's production, ensuring continuous feedback for equipment updates and optimizations, and achieving a combination of practical application and production.
Q2: Can Tianzheng bag-making machine be designed directionally on demand?
A: With years of experience in bag production, Tianzheng has mastered the bag-making process. We can meet customers' special requirements (such as oversized bags, online shape bag die-cutting, and added spouts...) to achieve production standards, fulfill non-standard customized orders, and perfectly align with customer production requirements.
Q3: What about the after-sales service of Tianzheng bag-making machines? Will there be no after-sales support after purchasing a Tianzheng bag-making machine?
A3: First and foremost, quality is the core of Tianzheng bag-making machines. Prioritizing machine quality aligns better with customers' purchasing criteria than focusing solely on after-sales service. Secondly, we guarantee a 24-month warranty period for all Tianzheng bag-making machines. We also commit to providing 365-day round-the-clock after-sales service, with 7/24 online consultation to resolve after-sales issues promptly. We make the utmost commitment to ensuring our customers have access to high-performance equipment.
