Main specification
Model | HL0800A7-S4 | |

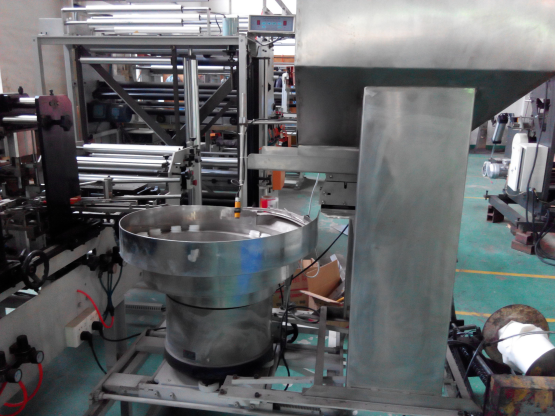

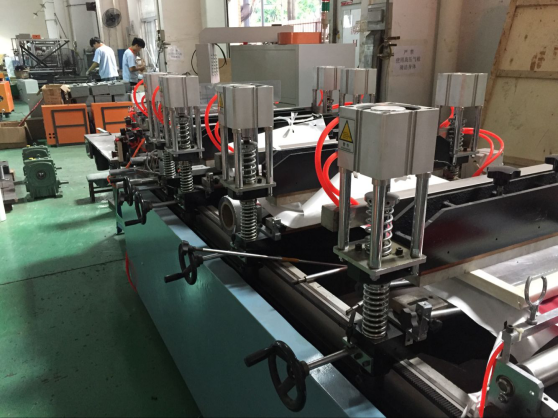

Structure design | Four Unwinding-valve conveying, valve inserting,vertical station,horizontal station,punching tools, sensor, conveying table, electricity controlling box | |
Controlling system | PLC | Japan Panasonic |
Equipment Drive | Three sets of Panasonic Servo Motors control Three traction, main motor is servo motor | |
Name | Four unwinding Three side sealing bag, stand-up bag, BIB Bag-in-Box four side sealing bag making machine | |
Application pouches | three side sealing bag, BIB Bag-in-Box with valve bag, stand-up bag, BIB 4 side sealing bag | |
Feeding Function | Automatic feeding by Air Cylinder. | |
Big advantages | 1. Japan imported Panasonic servo motors drive the traction（When speed up, no influence on the temperature, equipped with Japan reducer also); 2. Automatically pneumatic driven feeding device with photoelectric rectification tracking, upgrade the accuracy | |
Material | BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ; PET/PAPER/AL/PE of composite material and so on | |

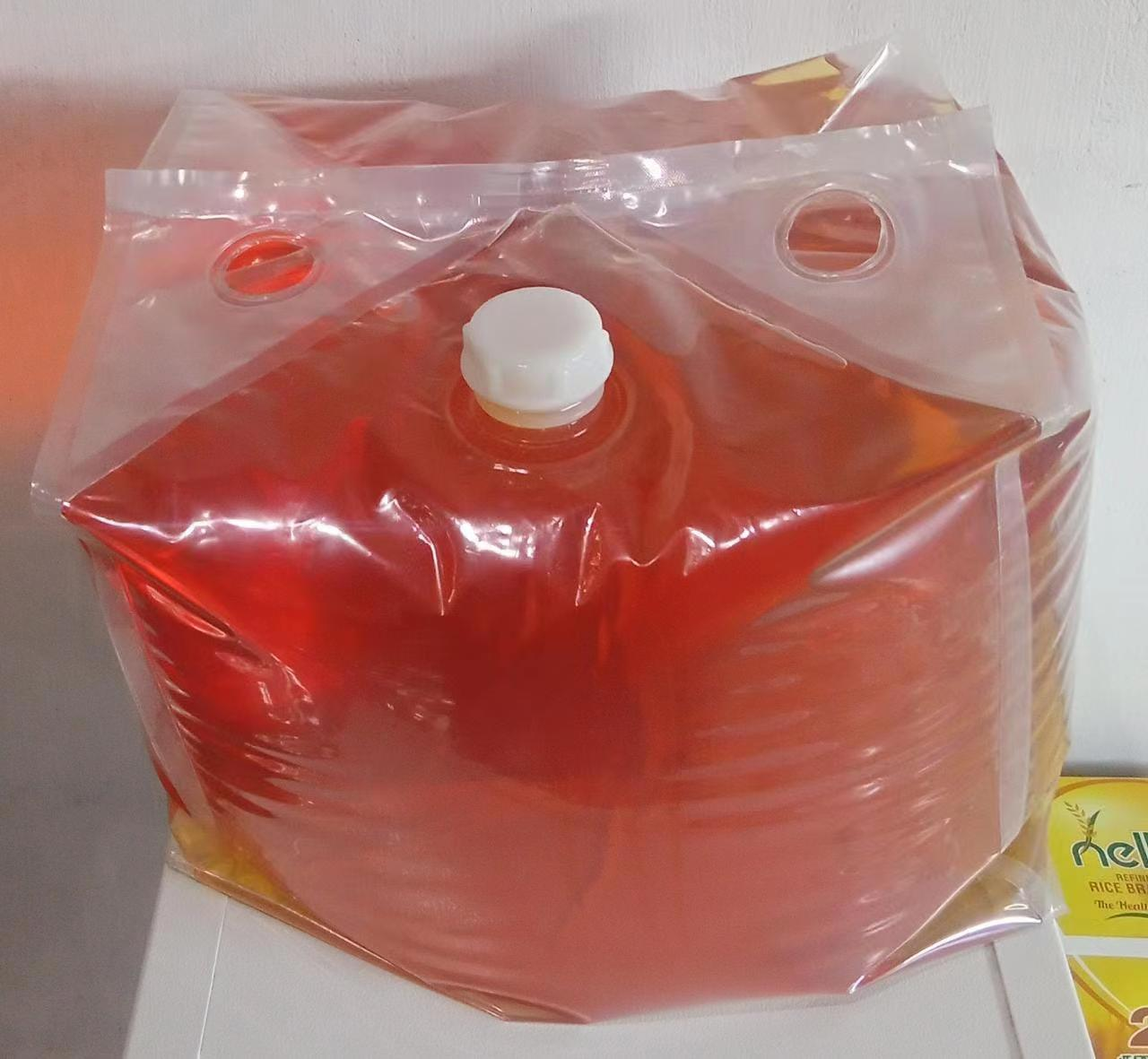

Bag-in-Box bag

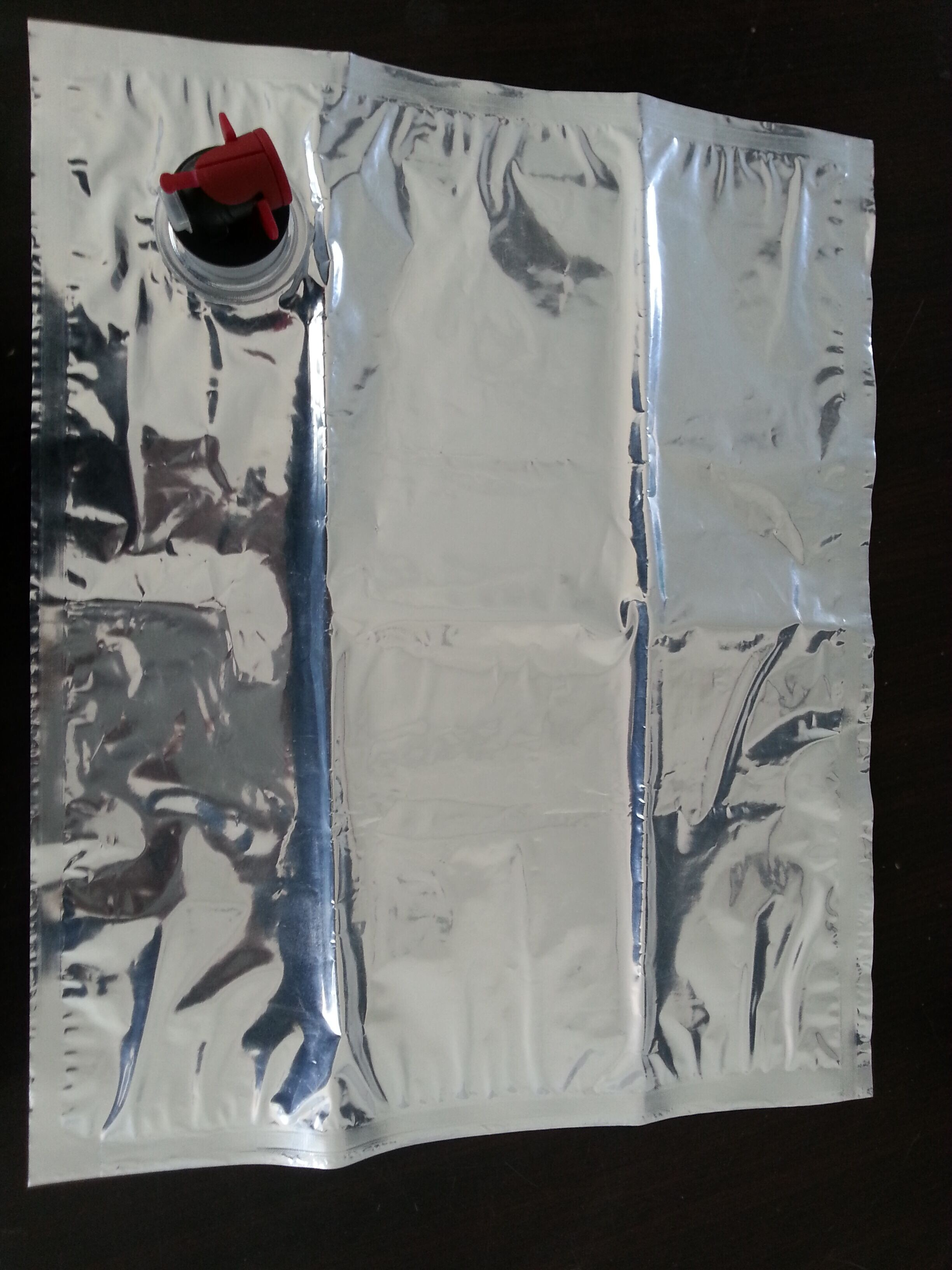

Three side sealing BIB bag

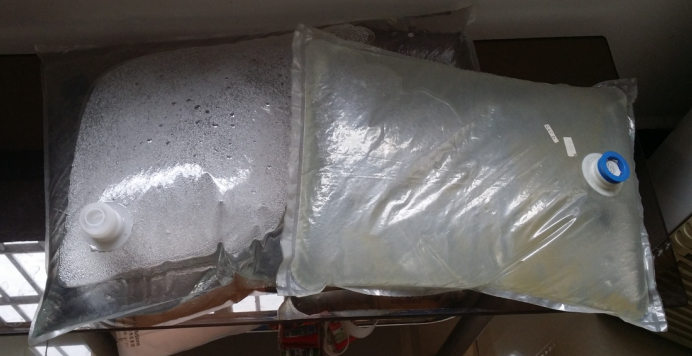

BIB four side sealing bag
NOTE: This bag is four side sealing BIB bag, the four side sealing BIB bag can make same function, so we recommend it should be replaced by four side sealing BIB bag，then higher efficient and more applicable.
Core Advantages: Precision, Stability, and Specialization
BIB Bag making machine has several features that, combined, could change the professional packaging production world, making it more efficient:
BIB bag production capacity. The system is mainly configured for BIB bag production, which is a high-value market segment with a limited market. It is a great choice for businesses that are either entering the industry for the first time or looking to increase their market share.
Getting close to measurement is so accurate that it is almost impossible to measure: Japan Panasonic servo motors and reducers combined with photoelectric correction tracking limit the machine's dimension errors to less than ±0.3mm. The valve insertion accuracy is also maintained to within ±0.5mm, thus resulting in BIB bags that would be very tightly sealed and functional.
Stable Operation at Variable Speeds:
The main advantage of a servo motor with a Japan reducer is temperature stabilization of the machine, even with rapid speed changes, thus contamination of the product by temperature changes is prevented. Besides that, production speed can be smoothly adjusted to the order demand, and hence it is possible to achieve production efficiency and product quality simultaneously.
Energy-Saving & Low Noise:
Newmachine energy consumption has been considerably decreased by up to 18%compared to the old machines by the use of the high-efficiency Panasonic servo system implementation, and also through mechanical design changes. Noise level during operation is less than 72dB; thus, the work environment becomes comfortable, and the nature stays peaceful.
Easy Operation &Maintenance:
The touch screen with a friendly interface merges all the operating functions, and operators require very little instruction. The modular structural design allows disassembling the major parts (servo motors, sealing heads, valve inserting mechanisms) quickly and easily without any tools, which enables daily maintenance to be done smoothly, andthe stop time is kept to a minimum.
