Technical Parameter
| Model | HL0600A8 | Power | 45kw |
| System | PLC | Control | Screen |
| Application of bags | 3-side sealing bags | Stand-up bags | vacuum valve bags |
| Speed | 30-130pcs/min | 30-100pcs/min | 20-40pcs/min |
| Specification | Width :85-600mm | Width:85-500mm | Width :85-300mm |
| Length:50-1600mm | Length:180-550mm | Length:180-550mm | |
| Voltage of Main Motor | 3kw | Voltage of traction motor | 1.5kwX2=3kw |
| Voltage of Unwinding motor | 0.55kw | Voltage of welding system | 4kw |
| Voltage of assitant Motor | 0.4kwX2=0.8kw | Voltage of horizontal sealing | 2kwX8=16kw |
| Voltage of vertical sealing | 2kwX8=16kw | Gross Weight | 5500kg |
| Tension Control | Automatic | Feeding | Cylinder |
| Overall Dimension | 10000X2000x1900mm | ||
| OptionalFunction | 1.Double Unwinding 2.Double Cutting-knife 3.Incessant Unwinding without stop the machine | ||

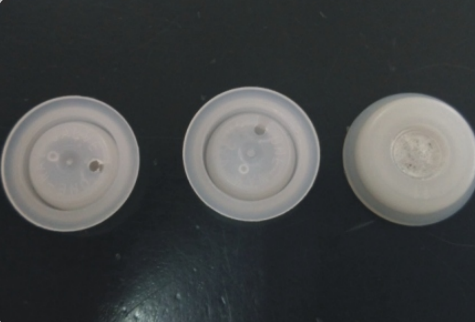

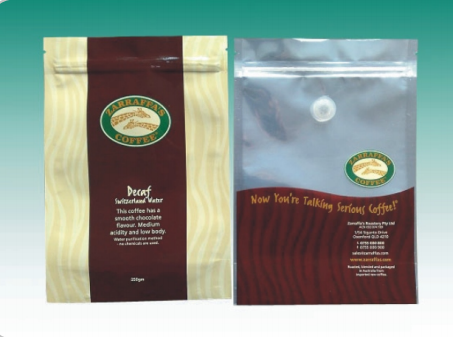

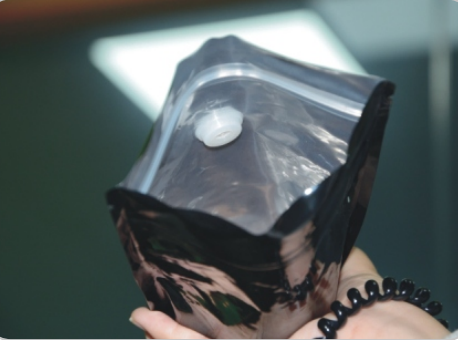

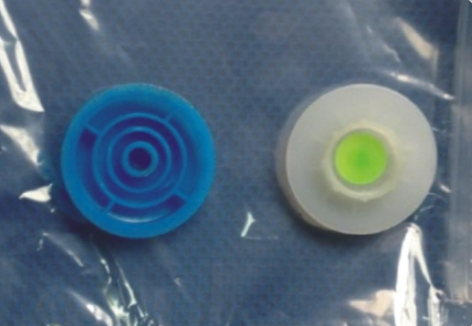

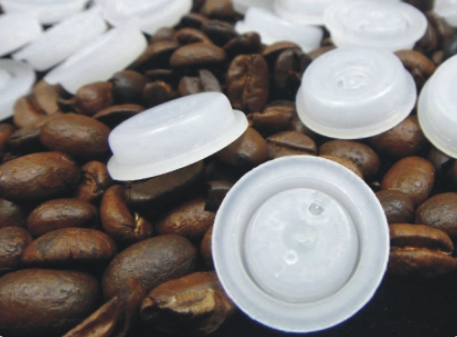

Applicable Bags sample:
Core Advantages: Efficiency, Precision, and Reliability
The Three Sides Seal, Stand-up, Zipper With Valve Bag Making Machine integrates multiple competitive advantages, addressing key pain points of enterprises in production efficiency, operational costs, and product quality:
Broad Adaptability: Covers three popular bag types and a wide range of specifications (length up to 1600mm for three-side sealing bags), eliminating the need for multiple machines and reducing equipment investment costs. It is adaptable for both regular and special packaging requirements, hence it is able to support the growth of the business.
Stable and Accurate Operation:
Basically, the automatic tension control unit first inspects the material features and then adjusts the film tension correspondingly. Thus, the films are saved from being excessively stretched, wrinkled, or misaligned. Besides, reliable sealing and welding machines can go beyond just producing a seal that is both airtight and durable, but also help to reduce the occurrence of product defects and increase customer satisfaction levels.
Energy-Saving and Quiet:
We are very sparing with the power that we use. In addition, through the selection of the right motor, the electric power consumption is kept to a minimum, so the running costs are kept at a lower level over time. Utilizing the ingenious mechanical design of the machine, the noise produced during its running has been lowered to less than 75 dB, thus a pleasant and green workshop environment has been created.
Easy Operation & Maintenance: The touch screen control interface features a layout so simple that, from the main screen, with only a couple of taps and you will jump into the working mode (changing parameters, production counting, fault diagnosis). The machine is designed in a modular way so that replacement of the parts that are usually difficult to reach (sealing heads, cutting knives, tension rollers) can be done quite easily, thus making routine maintenance less troublesome and fewer production stoppages.
Durable & Long-Lasting: The machine was designed for 24/7 continuous operation by the use of premium carbon steel and wear-resistant parts (e.g., stainless steel sealing heads, tungsten steel cutting knives). Keeping the machine in good condition as per normal will allow you to use it for over 10 years, which signifies a high return on investment.
FAQ
Q: Why choose me as the bag making machine supplier?
A: More than 33 years experienced in manufacturing bag making machine & accessoires, we adhere to the policy of self-production and self-use. Our machines are directly applied to our own company's production, ensuring continuous feedback for equipment updates and optimizations, and achieving a combination of practical application and production.
Q2: Can Tianzheng bag-making machine be designed directionally on demand?
A: With years of experience in bag production, Tianzheng has mastered the bag-making process. We can meet customers' special requirements (such as oversized bags, online shape bag die-cutting, and added spouts...) to achieve production standards, fulfill non-standard customized orders, and perfectly align with customer production requirements.
Q3: What about the after-sales service of Tianzheng bag-making machines? Will there be no after-sales support after purchasing a Tianzheng bag-making machine?
A3: First and foremost, quality is the core of Tianzheng bag-making machines. Prioritizing machine quality aligns better with customers' purchasing criteria than focusing solely on after-sales service. Secondly, we guarantee a 24-month warranty period for all Tianzheng bag-making machines. We also commit to providing 365-day round-the-clock after-sales service, with 7/24 online consultation to resolve after-sales issues promptly. We make the utmost commitment to ensuring our customers have access to high-performance equipment.
