Technical Parameter
| Model | HL0700A9-DH | Dimension(L*W*H) | 23000x3000x2300mm | G.W. | 10800kg | ||
| Three-phase Voltage | 380V+10%,50Hz | Total Power | 131.4kw | Raw Material | Various laminated films | ||
| Max. Width of Film | 1450mm | Max. Dia.of Film | 800mm | Temperature Control | PC control | ||
| Max. Width of Side Gusset Film | 300mm | Max. Dia.of SideGueest Film | 600mm | System Control | PLC control | ||
| Driving Type: | |||||||
| Main Drive | Shaft eccentricity | Main Motor | 5500W servo moto | ||||
| Feeding Traction | 5 groups x servo motors | Double Cutting | 2 groups x servo motors | Upper film traction | 1 group x servo motor | ||
| Side GussetLocation | 1set servo | Bottom gusset traction | 1 group x servo motor | ||||
| Side Gusset traction | 1 group x servo motor | Gusset Point Sealing | 1 group x servo motor | gusset cutter | 1 group x servo motor | ||
| Sealing Station: | |||||||
| Horizontal Sealing | 6groupsx740mm | Horizontal Cooling | 2groupsx740mm | Ultrasonic Strengthened | 2 groups | ||
| Vertical Sealing A | 3groups x780mm | Vertical Cooling A | 3groups x450mm | ||||
| Vertical Sealing B bottom-reinforced sealing | 3groups x200mm | Vertical Cooling B bottom-reinforced | 1group x200mm | VerticalSealing B Zipper | 2 groups x800mm | Vertical Cooling B-Zipper | 2 groups x450mm |
| Vertical Sealing C | 2groupsx800mm | Vertical Cooling C | 2groups x450mm | ||||
| upper film location sealing | 1groupx200mm | upper film location Location Cooling | 1groupx200mm | Gusset Location Sealing | 3groups x50mm | ||
| Available Pouches. | |||||||
| Flat bottom with/without zipper bag | Single Lane | L:160-600mm | W:100-370mm | Gusset width:55-150mm | Bottom depth:27.5-45mm | Speed:10-70pcs/min | |
| Double Lanes | L:160-300mm | W:100-370mm | Gusset width:55-150mm | Bottom depth:27.5-76mm | Speed:10-70pcs/min | ||
| Four side sealing with/without zipper bags | Single Lane | L:160-600mm | W:100-370mm | Gusset width:55-150mm | Speed:10-70pcs/min | ||
| Double Lanes | L:160-300mm | W:100-370mm | Gusset width:55-150mm | Speed:10-70pcs/min | |||
| Three side sealing with/without zipper bags | Single Lane | L:160-680mm | W:100-370mm | Speed:10-90pcs/min | |||
| Double Lanes | L:160-340mm | W:100-370mm | Speed:10-90pcs/min | ||||
Application of material:
BOPP/CPP ; BOPP/CPE ; BOPP/PET/PE ; BOPP/PET/CPP ; PET/PE ; PET/CPP ; PET/AL/PE ; PET/AL/NY/PE ; NY/PE ; PET/PAPER/AL/PE laminated pouch.

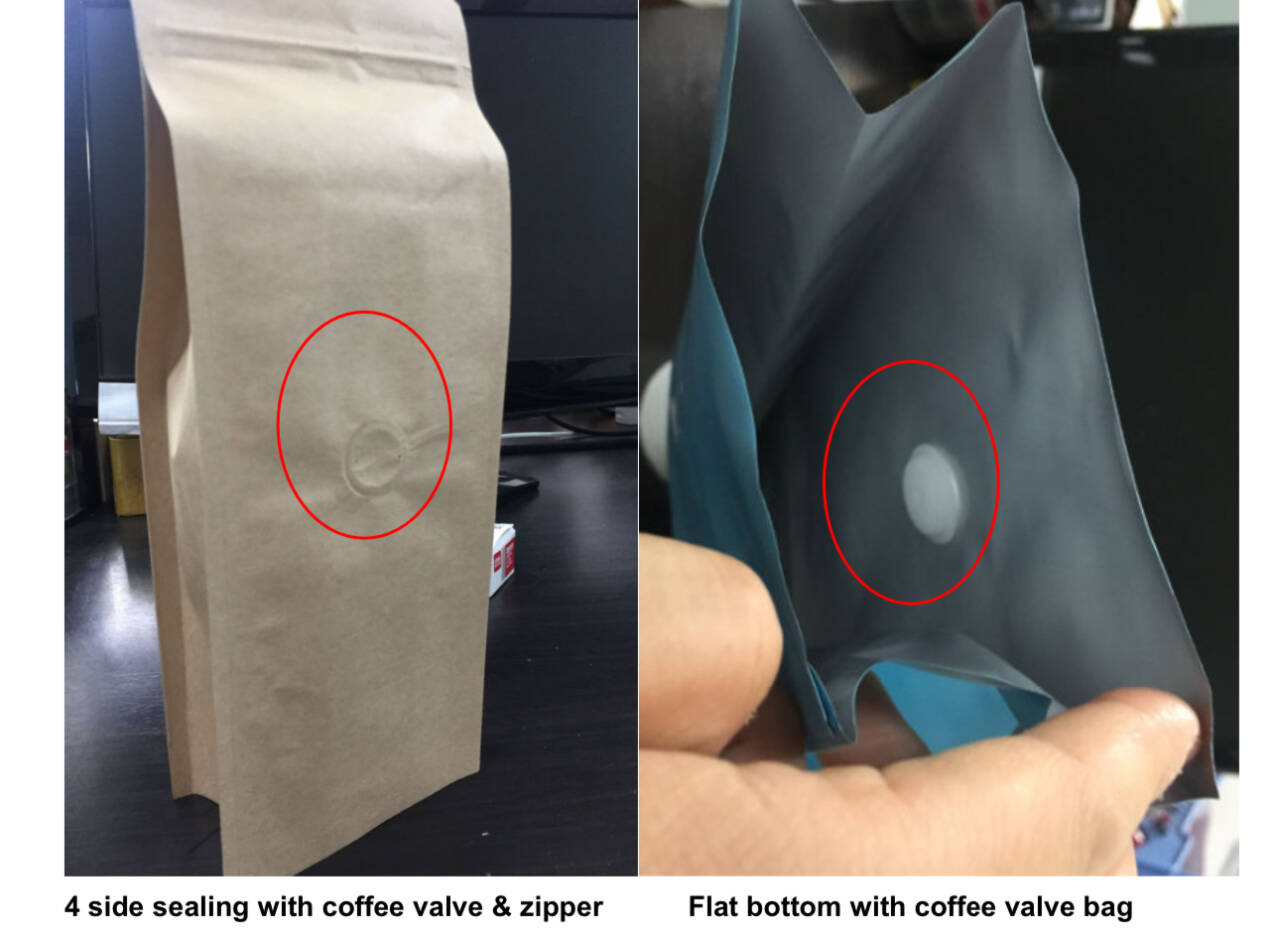

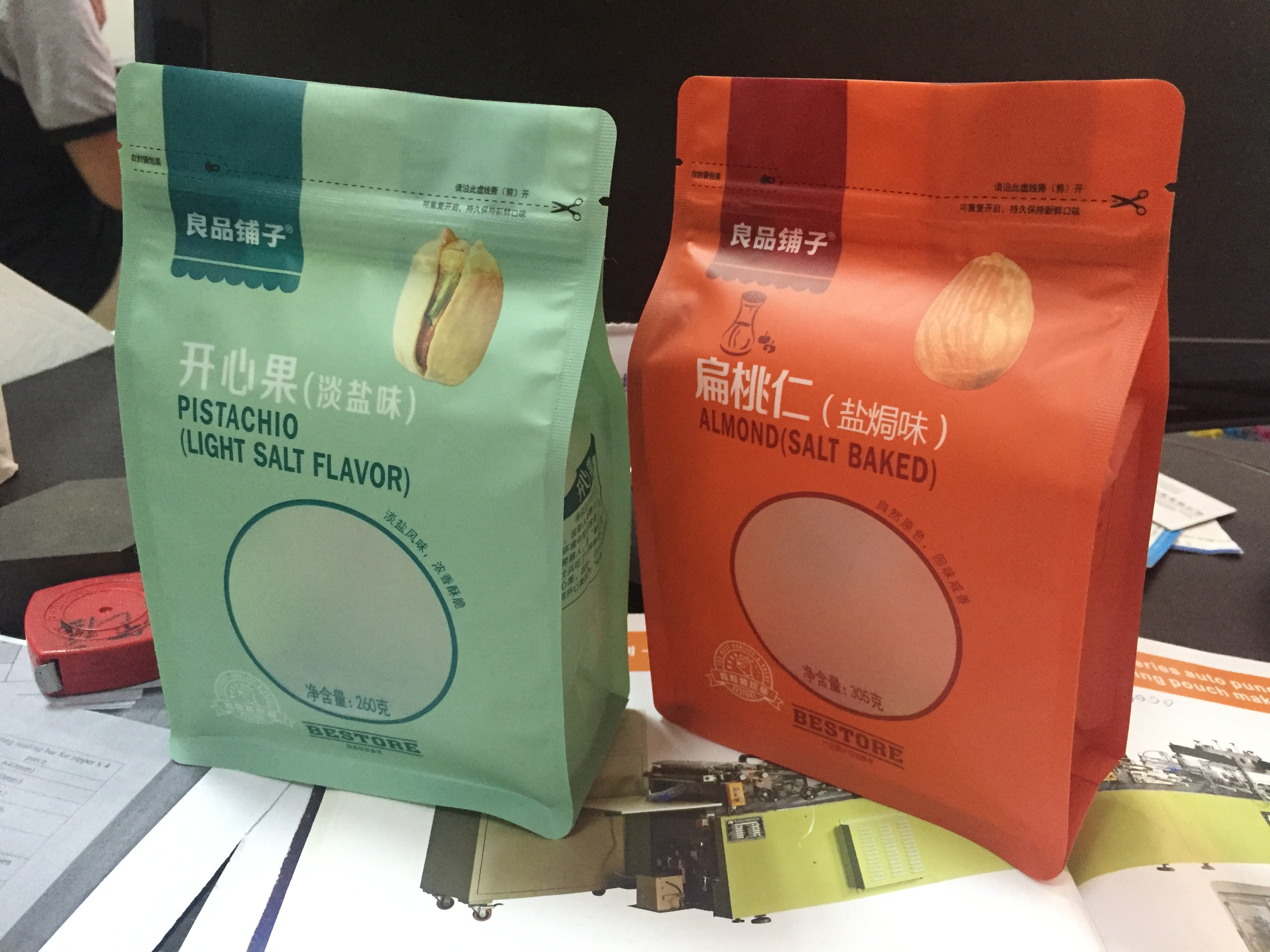

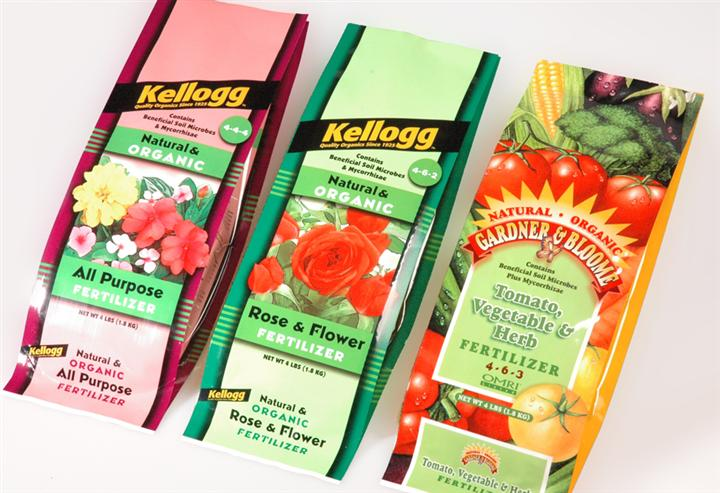

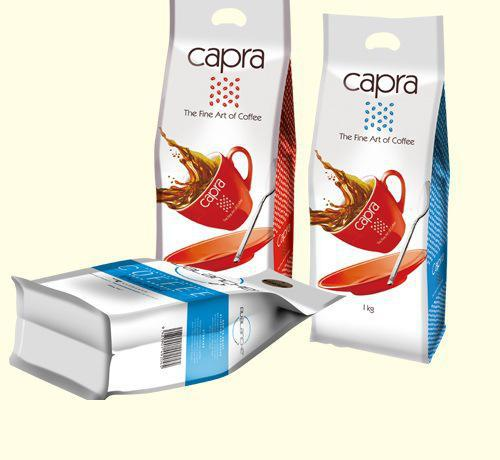

Sample Bags
About us
Foshan Tianzheng Machinery Co., Ltd. originated from Hongli Bag Making, established in 1993. After the reform and opening-up of the Pearl River Delta, the bag-making company rapidly grew and prospered. Tianzheng Machinery Limited is a recognized brand and leading OEM flexible packaging manufacturer in Guangdong Province.
Tianzheng Machinery inherits the bag-making process technology from Hongli Bag Making, which covers the whole chain from bag making to machinery manufacturing. They are a supplier of innovative machinery and equipment, combining R&D, manufacturing, sales, and services in just one business.
The firm mainly produces soft packaging die-cutting machines, bag-making machines, and roll-to-roll high-speed windowed hot stamping machines.
Tianzheng Machinery relies on its strong technical capabilities, professional process technology foundation, highly qualified personnel, and complete after-sales services. They have been awarded 10 domestic invention patents and 3 international patents, totaling 43 utility model patents and 1 design patent.
Tianzheng Machinery has obtained the ISO 90001 international quality system certification and has been awarded as a Guangdong Provincial-level specialized and sophisticated enterprise.
FAQ
Q: Why choose me as the bag making machine supplier?
A: More than 33 years experienced in manufacturing bag making machine & accessoires, we adhere to the policy of self-production and self-use. Our machines are directly applied to our own company's production, ensuring continuous feedback for equipment updates and optimizations, and achieving a combination of practical application and production.
Q2: Can Tianzheng bag-making machine be designed directionally on demand?
A: With years of experience in bag production, Tianzheng has mastered the bag-making process. We can meet customers' special requirements (such as oversized bags, online shape bag die-cutting, and added spouts...) to achieve production standards, fulfill non-standard customized orders, and perfectly align with customer production requirements.
Q3: What about the after-sales service of Tianzheng bag-making machines? Will there be no after-sales support after purchasing a Tianzheng bag-making machine?
A3: First and foremost, quality is the core of Tianzheng bag-making machines. Prioritizing machine quality aligns better with customers' purchasing criteria than focusing solely on after-sales service. Secondly, we guarantee a 24-month warranty period for all Tianzheng bag-making machines. We also commit to providing 365-day round-the-clock after-sales service, with 7/24 online consultation to resolve after-sales issues promptly. We make the utmost commitment to ensuring our customers have access to high-performance equipment.
