Technical Parameter:

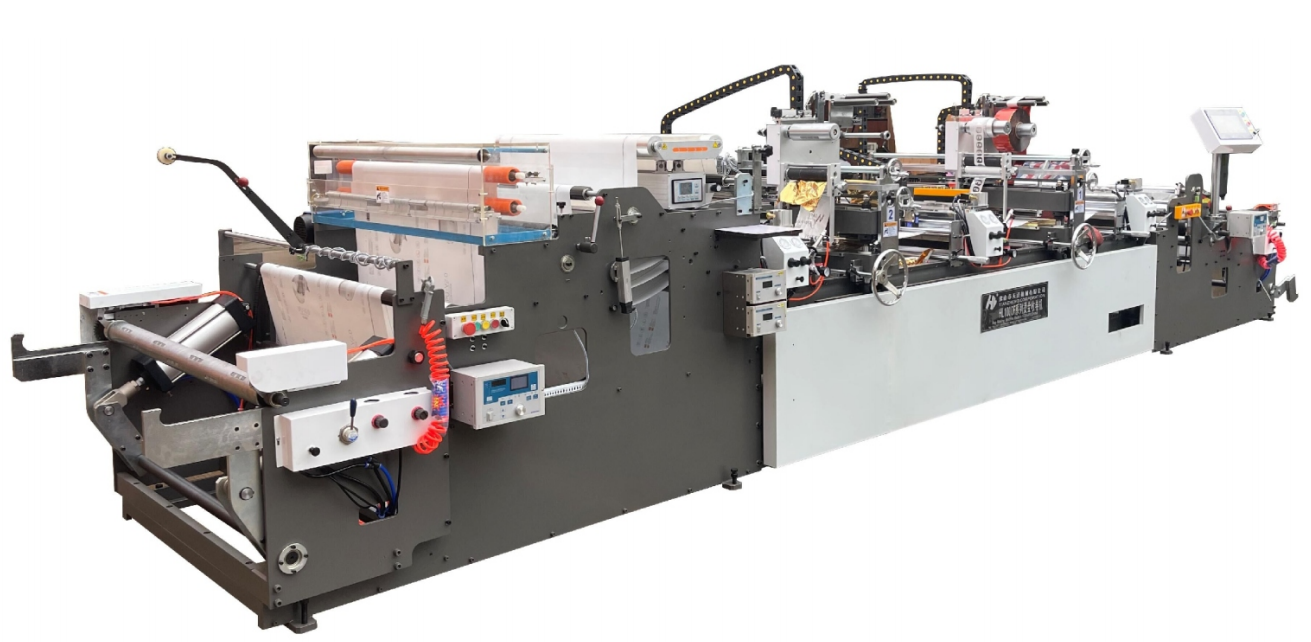

| Model | H1000FT-D HIGH SPEED PE material double colors stamping machine | ||||
| Voltage | 380V | Power | 19KW | Air pressure | 0.6Pa |
| Film diameters | 800mm | Film path width | 1000mm | Deviation of end face | +-2mm |
| Unwinding/rewinding | Air shaft with tension | Unwinding/Rewinding Speed | 35m/min | ||
| Application stamping material | OPP/CPP,BOPP/CPE.BOPP/PET/PE.BOPP/PETICPP PETICPP·PET/ALPE,.PETAL/NYIPE NYIPE,PETPAPER/ALPE and etc, Laminated materia.OPP/PET/matt PET/craft-paper, white board paper, non-woven fabric/white board paper,Special for PE flexible pad/napkin packing material: like LDPE+LLDPE/PE, PE laminated 3layers co-extruded film,LDPE+MLLDPE/PE and etc. | ||||
| Stamping speed(other material） | 20-120pcs/min | Stamping size(Max.) | 200-200mm | Stamping speed(PE material) | 20-80pcs/min |
| Application film thickness | 30-200microns | Machine dimension | 6.3mX1.7mX1.5m | Machine N.W | 5800KGS |
| Max.efficiency | Two groups stamping device (movable separately)。 can make two mixed logo stamping job, canmake twolanes single logo stamping job | ||||
| Mechanical high version fittings as below: | |||||
| Main motor | Servo motor X 1group | more stable and accurate movement | |||
| Traction | Servo motor X 3groups, servo setting between 2 stamping groups | Puling film more stable, avoid pe film any stretch | |||
| Unwinder/Rewinder | Servo motorX2sets | Stamp | Servo motor X 2sets | foil traction more accurate when stamping, perfect overprinting | |
| In addition to the flat stamping function,professional design for PE packaging stamping process use, added servo traction and servo rewinding withtension adjustment, can be optional laser positioning stamping function (optional one group or two groups) | |||||
| System Alarm function | 1.Photoelectric rectification runs deviation alarm; 2.finishing material auto stop machine alarm; 3.sensors tracks lost alarm. | ||||

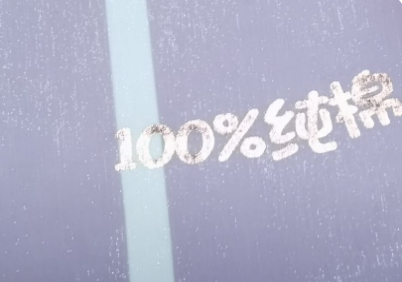

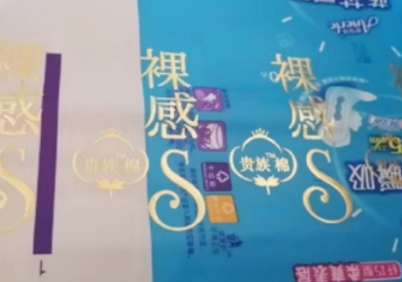

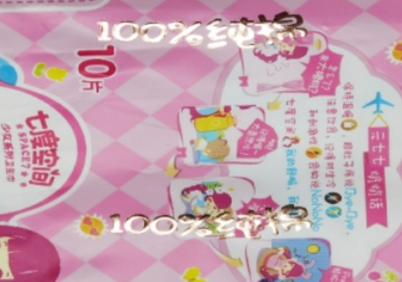

Sample Effect
Service guarantee
After the equipment debugging is qualified, we will provide comprehensive value-added services to ensure smooth production for customers. Provide exclusive operation training for customers, detailing the optimal operating parameters, operating procedures, daily maintenance skills, and common troubleshooting methods after equipment debugging; Equipped with complete debugging materials and technical manuals, including debugging plans, parameter setting tables, testing reports, etc., for customers to easily refer to and consult in the future; Establish an after-sales tracking mechanism, conduct follow-up visits to customers within 72 hours after equipment delivery to understand the operation status of the equipment, answer customers' questions about parameter optimization and operation, and if necessary, dispatch engineers to assist customers in on-site debugging and adaptation, fully ensuring the smooth development of customer production.
We always take "customer needs as the guide, quality assurance as the core", and provide refined and comprehensive equipment debugging services to ensure that every soft plastic packaging machinery can accurately match customer production needs, helping customers improve production efficiency, reduce production costs, and achieve mutual benefit and win-win results.
FAQ
Q1: Why Invest in a Hot Stamping Machine?
A1: As packaging demands grow increasingly diverse, the market competition for standard bag types has become intensely cutthroat. To put it simply: producing standard bags no longer generates reasonable or even meager profits for flexible packaging processors. Adding innovative designs and specialized features to packaging is the key to boosting processing margins.
Q2: Why Choose to Purchase Tianzheng Hot Stamping Machines?
A2: Tianzheng initiated the R&D of its first-generation hot stamping machines in 2016. Through market validation and technological innovation, we have now upgraded to the 12th-generation full-servo upper-drive CCD hot stamping machine for sanitary product packaging. This equipment enables accurate register printing on a variety of materials, featuring a large hot stamping area and crisp stamping lines. According to statistics, as of January 2026, Tianzheng hot stamping machines hold a 68% market share—a testament to market preference and industry recognition alike.
Q3: What Materials Can Tianzheng Hot Stamping Machines Be Applied to?
A3: Tianzheng offers a diverse range of hot stamping machine models. Our standard models are compatible with various roll-fed materials, including composite plastic films, paper and kraft paper rolls, laminated non-woven fabrics, and laminated woven fabrics. For single-layer materials such as PET, an on-line corona treatment unit must be installed to enable hot stamping on the substrate surface. As for the most challenging materials—LDPE and HDPE roll stock—our PE hot stamping machine dedicated to sanitary product packaging can deliver precise stamping results. In short, Tianzheng hot stamping machines fully meet the hot stamping requirements of a wide spectrum of materials, and they can truly be described as versatile all-in-one machines for diverse stamping needs.
Q4: What Additional Functions Does the Tianzheng Hot Stamping Machine Offer Besides Hot Stamping?
A4: The standard configuration of Tianzheng hot stamping machines features two hot stamping stations combined with one double-station punching window. The machine is capable of performing simultaneous dual-line hot stamping and windowing via the two stations, and can also realize combined register hot stamping and combined punching window functions. In addition, we can customize the machine with on-line labeling, on-line punching and on-line coding functions according to customer requirements. This enables a single machine to efficiently and comprehensively complete all profit-boosting processes. For specific customization needs, feel free to contact us for consultation.
Q5: Are the costs of Tianzheng's hot stamping molds, punching die cutters high? What about hot stamping foil? Is the overall hot stamping cost expensive?
A5: The cost of our hot stamping molds is highly cost-effective. Our hot stamping molds are mainly made of copper plates processed by CNC wire cutting—this material boasts excellent durability, with a unit price of approximately RMB 120–200 (pricing subject to hot stamping area). Magnesium-zinc plates are also an option (recommended for large-area hot stamping to control costs). The cost of punching die cutter is even lower, at around RMB 150 per piece, and each plate can withstand over 700,000 windowing punch cuts, resulting in an extremely low unit cost. Hot stamping foil is also reasonably priced, with variations based on different types. The mainstream market price is about RMB 80 per roll (specification: 200m × 640mm width). Therefore, the hot stamping cost for a single 100×100mm stamping area is approximately 0.017 RMB, translating to highly attractive processing profits for our customers.
