High speed window multi-color hot stamping machine is a high speed, small area, can be multi-color positioning, set hot stamping, window opening model. Suitable for processing materials are PE, BOPP, PET, composite film, paper-plastic composite materials, all kinds of paper, non-woven fabrics, leather and other drum materials.
Technical Parameters
| Model | HL1000T3-UC-CCD | ||
| Electricity Volatage | 380V | Total KW | 28KW |
| Air pressure | 0.6Pa | Unwinding diameters | 800/1000mm |
| Unwinding width | 1020mm | Deviation bias | 5mm |
| Max.fixed length | 900mm | Fixed length Accuracy | within 0.5mm |
Stamping function
| Max. Stamping size | 200 x200mm | Stamping speed | 200pcs/min | stamping material | Aluminum foils(hundreds colors) | |
| Application: | LDPE HDPE.PET some flexible material accurate registered stamping job with cocona treatment in-line processing | |||||
| Stamping stations | 3 stations | Tractions qtys.: | 4 tractions driven by servo | |||
| Sensor mark: | ltaly datalogic: 3pcs | CCD vision device | synchronized in-line inspection by camera | |||
| Machine overal dimension | About 7 .8m*2.2m*1.75m | Net weight | 6500 KGS | |||
| Advantages | Totally for 20 servo motors, Main motor servo.4 sets of Servo traction Motors,servo driven unwinding & rewinding , 4servos per station registered stamping, unwinding rectification micro servo, 3sets CCD Camera | |||||

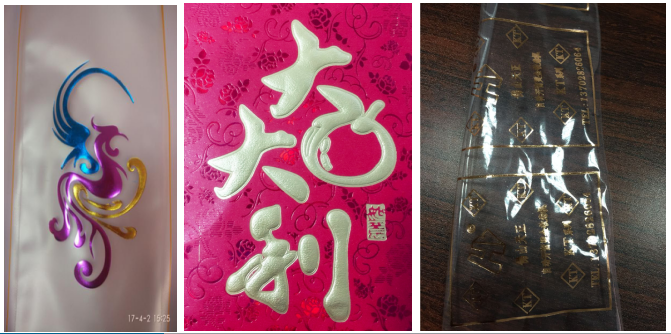

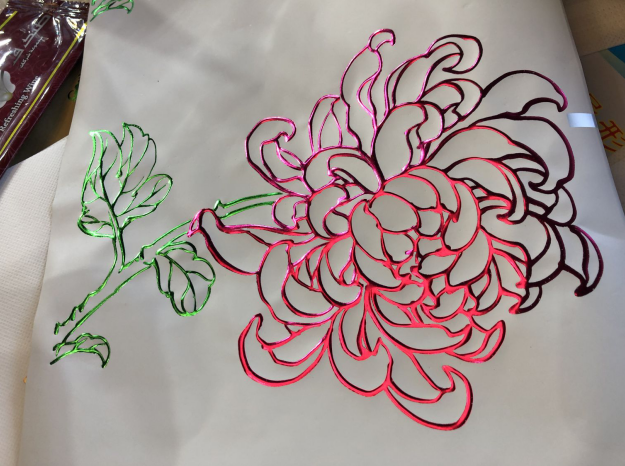

STAMPING EFFECT
advantage
* Patented hot stamping station finish material alarm function to avoid human factors waste of raw materials.
* Brass heating plate for more uniform heating and longer life.
About us
Foshan Tianzheng Machinery Co., Ltd. originated from Hongli Bag Making, established in 1993. As a bag-making enterprise that grew and thrived during the reform and opening-up of the Pearl River Delta, it is a renowned OEM manufacturer of flexible packaging in Guangdong Province. Tianzheng Machinery inherits the bag-making process technology from Hongli Bag Making, spanning from bag production to machinery manufacturing. It is an innovative supplier of machinery and equipment, integrating R&D, manufacturing, sales, and services. The company specializes in soft packaging die-cutting machines, bag-making machines, and roll-to-roll high-speed windowed hot stamping machines. With robust technical capabilities, professional process technology foundation, a high-quality workforce, and comprehensive after-sales service, Tianzheng Machinery holds 10 domestic invention patents and 3 international patents, totaling 43 utility model patents and 1 design patent. It has obtained ISO 90001 international quality system certification and is recognized as a Guangdong Provincial-level specialized and sophisticated enterprise.
FAQ
Q1: Why Invest in a Hot Stamping Machine?
A1: As packaging demands grow increasingly diverse, the market competition for standard bag types has become intensely cutthroat. To put it simply: producing standard bags no longer generates reasonable or even meager profits for flexible packaging processors. Adding innovative designs and specialized features to packaging is the key to boosting processing margins.
Q2: Why Choose to Purchase Tianzheng Hot Stamping Machines?
A2: Tianzheng initiated the R&D of its first-generation hot stamping machines in 2016. Through market validation and technological innovation, we have now upgraded to the 12th-generation full-servo upper-drive CCD hot stamping machine for sanitary product packaging. This equipment enables accurate register printing on a variety of materials, featuring a large hot stamping area and crisp stamping lines. According to statistics, as of January 2026, Tianzheng hot stamping machines hold a 68% market share—a testament to market preference and industry recognition alike.
Q3: What Materials Can Tianzheng Hot Stamping Machines Be Applied to?
A3: Tianzheng offers a diverse range of hot stamping machine models. Our standard models are compatible with various roll-fed materials, including composite plastic films, paper and kraft paper rolls, laminated non-woven fabrics, and laminated woven fabrics. For single-layer materials such as PET, an on-line corona treatment unit must be installed to enable hot stamping on the substrate surface. As for the most challenging materials—LDPE and HDPE roll stock—our PE hot stamping machine dedicated to sanitary product packaging can deliver precise stamping results. In short, Tianzheng hot stamping machines fully meet the hot stamping requirements of a wide spectrum of materials, and they can truly be described as versatile all-in-one machines for diverse stamping needs.
Q4: What Additional Functions Does the Tianzheng Hot Stamping Machine Offer Besides Hot Stamping?
A4: The standard configuration of Tianzheng hot stamping machines features two hot stamping stations combined with one double-station punching window. The machine is capable of performing simultaneous dual-line hot stamping and windowing via the two stations, and can also realize combined register hot stamping and combined punching window functions. In addition, we can customize the machine with on-line labeling, on-line punching and on-line coding functions according to customer requirements. This enables a single machine to efficiently and comprehensively complete all profit-boosting processes. For specific customization needs, feel free to contact us for consultation.
Q5: Are the costs of Tianzheng's hot stamping molds, punching die cutters high? What about hot stamping foil? Is the overall hot stamping cost expensive?
A5: The cost of our hot stamping molds is highly cost-effective. Our hot stamping molds are mainly made of copper plates processed by CNC wire cutting—this material boasts excellent durability, with a unit price of approximately RMB 120–200 (pricing subject to hot stamping area). Magnesium-zinc plates are also an option (recommended for large-area hot stamping to control costs). The cost of punching die cutter is even lower, at around RMB 150 per piece, and each plate can withstand over 700,000 windowing punch cuts, resulting in an extremely low unit cost. Hot stamping foil is also reasonably priced, with variations based on different types. The mainstream market price is about RMB 80 per roll (specification: 200m × 640mm width). Therefore, the hot stamping cost for a single 100×100mm stamping area is approximately 0.017 RMB, translating to highly attractive processing profits for our customers.
