HL1000/1200KT high speed window multi-color hot stamping machine is a high-speed miniaturized machine, which can carry out multi-color positioning, set hot stamping, window opening model techniques. Suitable tab materials for the processing are PE, BOPP, PET, composite films, paper-plastic composites, all kinds of paper, non-woven fabrics, leather and drum materials. The machine is equipped with several patented technologies which make it a cost-effective, simple operation, stable quality classic model, our company which is engaged in the hot stamping industry has been doing for a long time.
Technical Parameters
| Model | HL1000T4 | ||
| Electricity Volatage | 380V | Total KW | 28KW |
| Air pressure | 0.6Pa | Unwinding diameters | 800/1000mm |
| Unwinding width | 1000mm | Deviation bias | 5mm |
| Max.fixed length | 900mm | Fixed length Accuracy | within 0.5mm |
Stamping function
| Max. Stamping size | 200 x200mm | Stamping speed | 200pcs/min | stamping material | Aluminum foils(hundreds colors) | |
| Application: | LDPE HDPE.PET some flexible material accurate registered stamping job with cocona treatment in-line processing | |||||
| Stamping stations | 3 stations | Tractions qtys.: | 4 tractions driven by servo | |||
| Sensor mark: | ltaly datalogic: 3pcs | |||||
| Machine overal dimension | About 7 .3m*1.86m*1.58m | Net weight | 6000 KGS | |||
| Advantages | Winding automatic constant tension closed-loop control, computer automatic correction, automatic alarm shutdown, prevent waste of materials, convenient. Gold stamping headband tension mechanism. | |||||

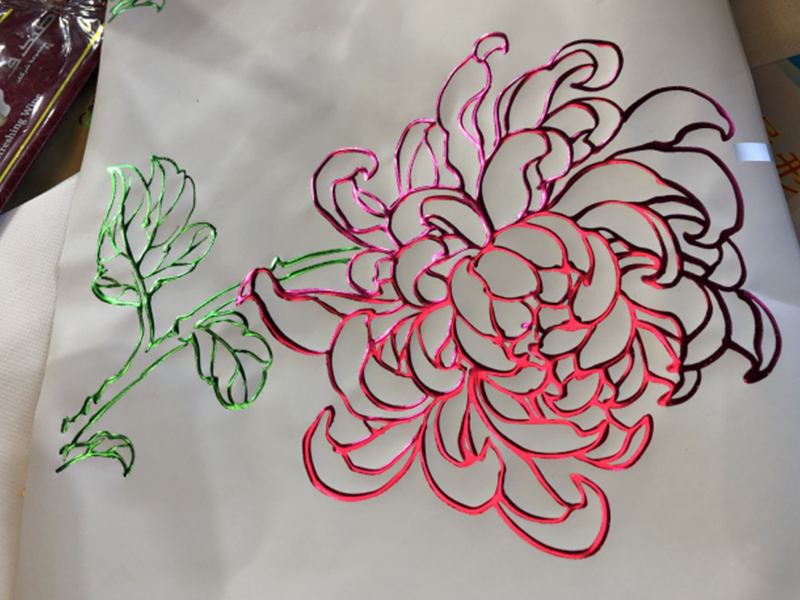

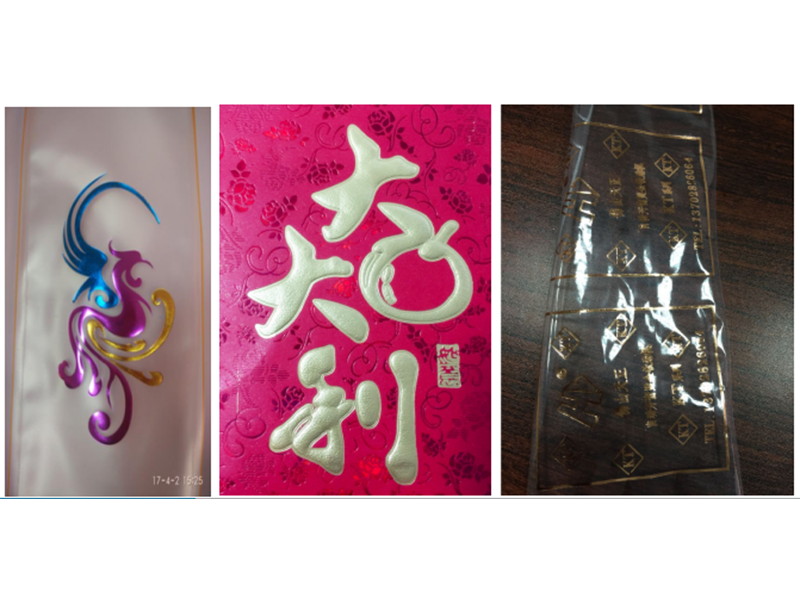

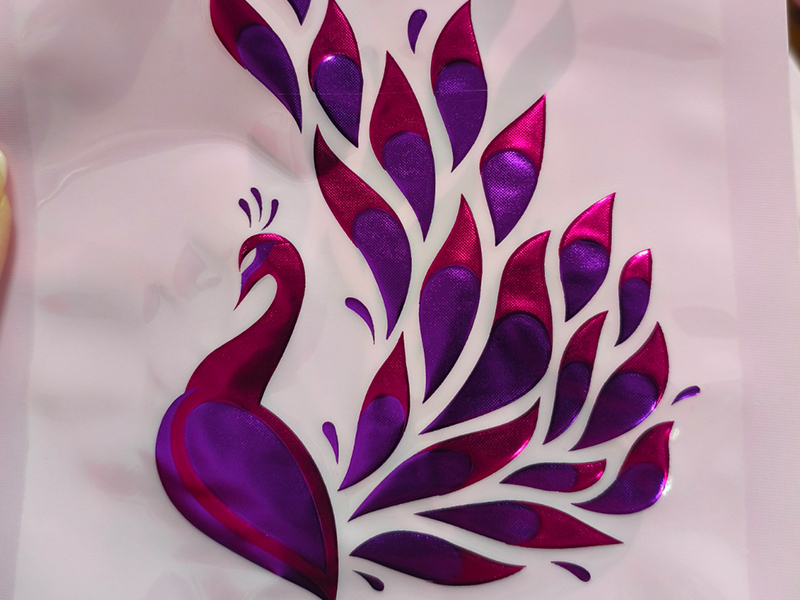

Sample Effect
Service guarantee
After the equipment debugging passes, users will be given additional support and value-added services that will highly contribute to the smooth running of the production. After the equipment has been debugged, we give customers exclusive running training, explaining operating parameters that might produce maximum yield, standard operating procedures, daily maintenance skills, and usual troubleshooting methods. Besides that, we have prepared a complete set of debugging materials and technical manuals that include a debugging plan, parameter setting tables, testing reports, etc., which customers can easily find and refer to later on.
In addition, we have set up a post-sales tracking mechanism, more than 72 hours after the equipment delivery, the sales staff should go to the customers to check the condition of the equipment and answer customers' questions about parameter optimization and operation, if necessary, a customer engineer will be sent to the site to assist the debugging and adaptation, thus the smooth running of the customer's production is 100% guaranteed.
We have made a decision to be primarily directed by the needs of our clients, while keeping the high quality of our work at the very heart of our existence. Therefore, providing fully prepared and comprehensive equipment debugging services that ensure each soft plastic packaging machinery is in exact compliance with the production needs of the customer, a factor that leads to customers' production efficiency increase, their production costs decrease, and the stage of mutual benefit and win-win collaboration is reached.
FAQ
Q1: Why Invest in a Hot Stamping Machine?
A1: As packaging demands grow increasingly diverse, the market competition for standard bag types has become intensely cutthroat. To put it simply: producing standard bags no longer generates reasonable or even meager profits for flexible packaging processors. Adding innovative designs and specialized features to packaging is the key to boosting processing margins.
Q2: Why Choose to Purchase Tianzheng Hot Stamping Machines?
A2: Tianzheng initiated the R&D of its first-generation hot stamping machines in 2016. Through market validation and technological innovation, we have now upgraded to the 12th-generation full-servo upper-drive CCD hot stamping machine for sanitary product packaging. This equipment enables accurate register printing on a variety of materials, featuring a large hot stamping area and crisp stamping lines. According to statistics, as of January 2026, Tianzheng hot stamping machines hold a 68% market share—a testament to market preference and industry recognition alike.
Q3: What Materials Can Tianzheng Hot Stamping Machines Be Applied to?
A3: Tianzheng offers a diverse range of hot stamping machine models. Our standard models are compatible with various roll-fed materials, including composite plastic films, paper and kraft paper rolls, laminated non-woven fabrics, and laminated woven fabrics. For single-layer materials such as PET, an on-line corona treatment unit must be installed to enable hot stamping on the substrate surface. As for the most challenging materials—LDPE and HDPE roll stock—our PE hot stamping machine dedicated to sanitary product packaging can deliver precise stamping results. In short, Tianzheng hot stamping machines fully meet the hot stamping requirements of a wide spectrum of materials, and they can truly be described as versatile all-in-one machines for diverse stamping needs.
Q4: What Additional Functions Does the Tianzheng Hot Stamping Machine Offer Besides Hot Stamping?
A4: The standard configuration of Tianzheng hot stamping machines features two hot stamping stations combined with one double-station punching window. The machine is capable of performing simultaneous dual-line hot stamping and windowing via the two stations, and can also realize combined register hot stamping and combined punching window functions. In addition, we can customize the machine with on-line labeling, on-line punching and on-line coding functions according to customer requirements. This enables a single machine to efficiently and comprehensively complete all profit-boosting processes. For specific customization needs, feel free to contact us for consultation.
Q5: Are the costs of Tianzheng's hot stamping molds, punching die cutters high? What about hot stamping foil? Is the overall hot stamping cost expensive?
A5: The cost of our hot stamping molds is highly cost-effective. Our hot stamping molds are mainly made of copper plates processed by CNC wire cutting—this material boasts excellent durability, with a unit price of approximately RMB 120–200 (pricing subject to hot stamping area). Magnesium-zinc plates are also an option (recommended for large-area hot stamping to control costs). The cost of punching die cutter is even lower, at around RMB 150 per piece, and each plate can withstand over 700,000 windowing punch cuts, resulting in an extremely low unit cost. Hot stamping foil is also reasonably priced, with variations based on different types. The mainstream market price is about RMB 80 per roll (specification: 200m × 640mm width). Therefore, the hot stamping cost for a single 100×100mm stamping area is approximately 0.017 RMB, translating to highly attractive processing profits for our customers.
