Biggest Advantages:
1.Auto in-mould label die cutting machine adopts PLC control, intellgent interface to control, easy operation and understand.
2.Intellgent type pressure adjustment, 10 microns accuracy adiustment. instead of manual pressure regulation, no need storthe machine to finished adjustment the pressure.
3.Servo motor drive accurate positioning, low noise, stable pressure, accurate pulling; Suitable for high quality needs, moredurable and long life span;
4.Fast installation of die cutter, auick and convenient adiustment, hiah precision, small die wear, longer life, make employeesmore relaxed:
5.Traditional iron roling die is high charge if various product requirement, and change dificultily, in-mould lebel die cutting machine adopts woodendie cutter to lower die mould cost and saving much time.
Main Parameter:
Technical name | Details parameters: |
Model: | HL0600MQ |
Name | AUTO IN-MOLD LABEL DIE CUTTING MACHINE |
Unwinding film width: | 600mm |
Die cutting size: | Max.: Length（traction direction）300mm × Width:580mm |
Die cutting speed: | Min. speed: 20pcs/min; Max. Speed: 200pcs/min |
Accuracy | ±0.1mm |
Unwinding max. diameters | Ф500 mm |
Power | 380V/ 50HZ/ 3phase/4 wires |
Air consumption | 0.6mpa |
Machine KW | 7KW |
Net Weight | 2.4 tons |
Machine Dimension | 5m * 1.65m * 1.2m |

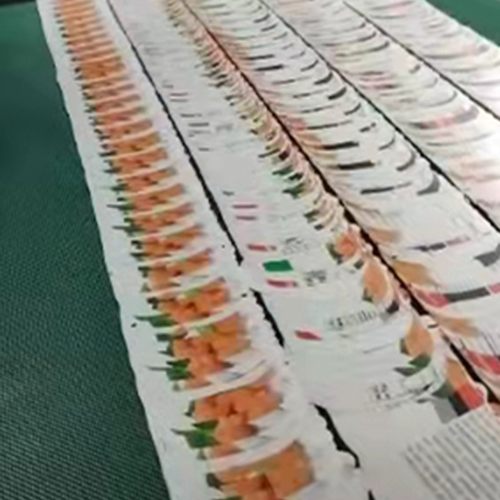

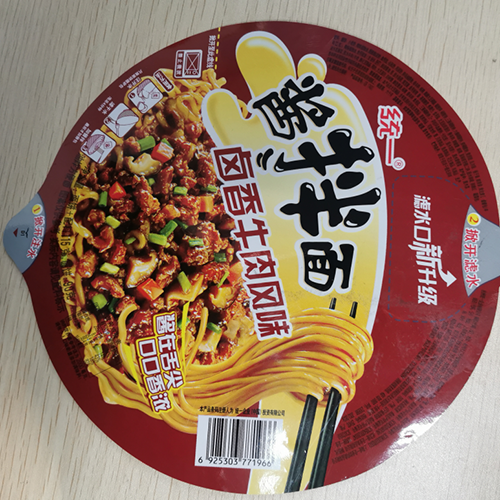

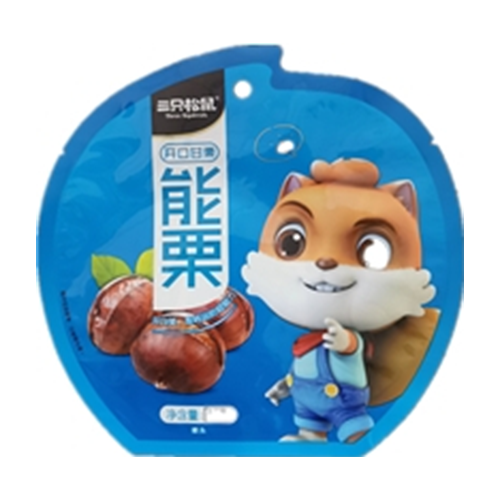

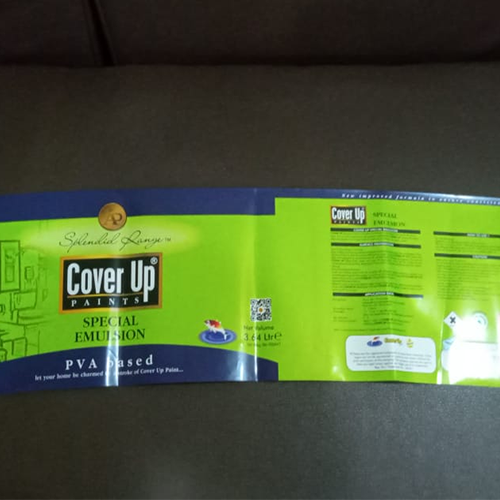

Sample Pictures
Service guarantee
After the equipment debugging is qualified, we will provide comprehensive value-added services to ensure smooth production for customers. Provide exclusive operation training for customers, detailing the optimal operating parameters, operating procedures, daily maintenance skills, and common troubleshooting methods after equipment debugging; Equipped with complete debugging materials and technical manuals, including debugging plans, parameter setting tables, testing reports, etc., for customers to easily refer to and consult in the future; Establish an after-sales tracking mechanism, conduct follow-up visits to customers within 72 hours after equipment delivery to understand the operation status of the equipment, answer customers' questions about parameter optimization and operation, and if necessary, dispatch engineers to assist customers in on-site debugging and adaptation, fully ensuring the smooth development of customer production.
We always take "customer needs as the guide, quality assurance as the core", and provide refined and comprehensive equipment debugging services to ensure that every soft plastic packaging machinery can accurately match customer production needs, helping customers improve production efficiency, reduce production costs, and achieve mutual benefit and win-win results.
FAQ
Q1: Why exactly do you need a die-cutting machine? What sorts of bags can it be used on?
A1: When the variety of packaging requirements increases, the competition for conventional types of bags gets tighter. Die-cut bags have a broad application in packaging food, chemicals, masks, and spout pouches. Die-cutting machines have been solving the old adhesive bottom and edge problems in stand-up and eight-sided seal bags, thus turning them into a must-have in the soft packaging industry.
Q2: Will the Tianzheng die-cutting machine be able to work with the existing bag-making machines?
A2: Of course, it will. It is compatible with the bag-making machines of any brand. With 12 years of market experience and over 3,000 units, it is an easy-to-operate machine, thus allowing for rapid production integration.
Q3: How long does the die-cutting plate of the Tianzheng machine remain functional?
A3: In cases of normal usage, the die-cutting plate is capable of performing between 30,000 to 800,000 cuts. It is a highly durable, economical piece of equipment and is equipped with video tutorials for easy operation.
