To solve the issue of labor costs rise, improve the efficiency of enterprise production, now our company introduced automatic spout setter machine, this equipment runs under security, automatic, stablity. Product is well applied to weld plastic suction spouts, preheating, three times heat wielding and cooling to ensure its well complicity after multiple heat sealing and cooling, which is suitable for different spout at the same time.
Main technical parameters:
Name: | Auto spout angle inserted machine | Model: | HL0250C8 | |
Main Function: | Auto fetch spout and pouches-cutting angle- auto heat wielding & cooling - Collecting the good pouches- eliminate the failed pouches | |||

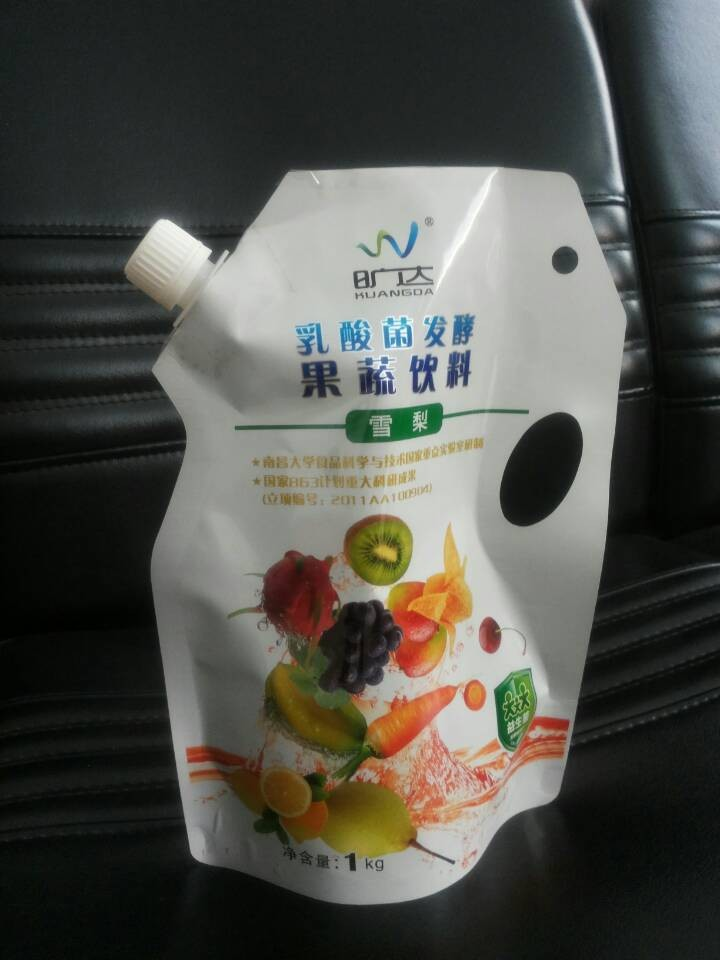

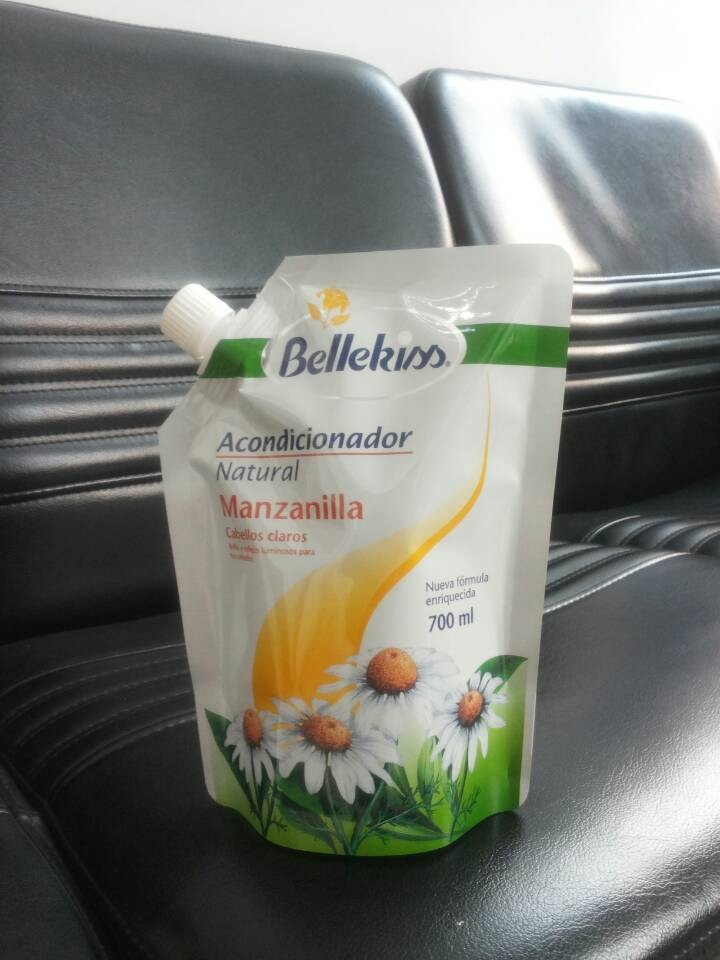

Bags application: | 3-sides sealing bags, stand-up bags, two side sealing bags | |||
Cutting angle degree: | 45° | Direction： | Angle | |
Application dimension: | Length：150-280mm Width：130—200mm | Max. size：W:220*L:320 | ||
Speed: | 15-30pcs/min | Pouches thickness: ≥120microns | ||
Available spout size: | Ф8.7/10/13/15/16mm (ONLY ONE SIZE ,ONE TYPE), NEED TO CONFIRM BEFORE ORDER | |||
Machine dimension | 3200*2200*2500mm | Cooling type: |
Water cooling | |
Air Consume: | 25L/MIN,5 bars | Net Weight: | 1100KGS | |
Motor: | 12kw/380v | Gross Weight: | 1200KGS | |
Storage quantities for bags in prepared shelf | 100-300 pcs | |||
Service guarantee
After the equipment debugging is qualified, we will provide comprehensive value-added services to ensure smooth production for customers. Provide exclusive operation training for customers, detailing the optimal operating parameters, operating procedures, daily maintenance skills, and common troubleshooting methods after equipment debugging; Equipped with complete debugging materials and technical manuals, including debugging plans, parameter setting tables, testing reports, etc., for customers to easily refer to and consult in the future; Establish an after-sales tracking mechanism, conduct follow-up visits to customers within 72 hours after equipment delivery to understand the operation status of the equipment, answer customers' questions about parameter optimization and operation, and if necessary, dispatch engineers to assist customers in on-site debugging and adaptation, fully ensuring the smooth development of customer production.
We always take "customer needs as the guide, quality assurance as the core", and provide refined and comprehensive equipment debugging services to ensure that every soft plastic packaging machinery can accurately match customer production needs, helping customers improve production efficiency, reduce production costs, and achieve mutual benefit and win-win results.
